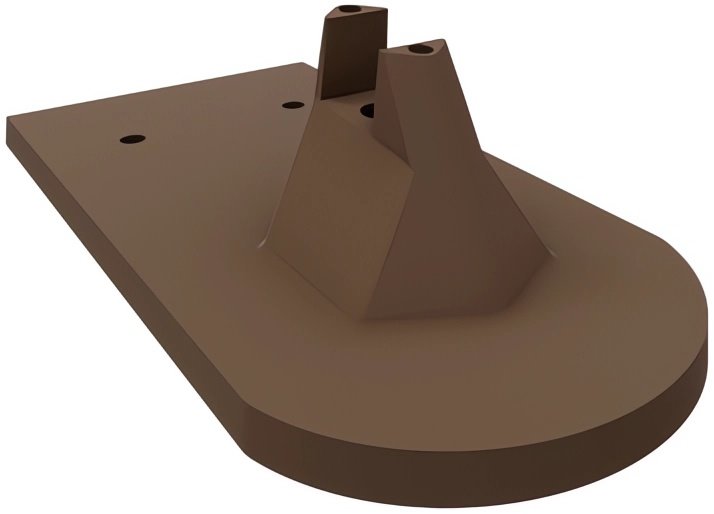

Akusolar beaver tail roof tile with bracket, dark brown RAL 8014

Akusolar roof tiles of the beaver tail type enable easy and gentle installation of PV systems on roofs, thanks to an integrated bracket for securing the structure. The tiles in a dark brown color (RAL 8014) are installed on a one-to-one replacement basis, eliminating the need for grinding original tiles and preserving the aesthetic appearance of the roof. They are fully compatible with profiles of 40 × 40 mm and 40 × 45 mm. An ideal solution for quick photovoltaic installation on beaver tail roof coverings, emphasizing ease of installation and long-term durability.

Key Features

• Dimensions: 385 x 183 mm
• For 40 x 40 mm profile (40 x 45 mm profile with the use of EPDM sealing)
• Resistant to uplift forces up to 850 kg
• Significant installation speed improvement
• No leakage into the roof
• Placed under panels, it does not disrupt the aesthetic appearance of the roof
