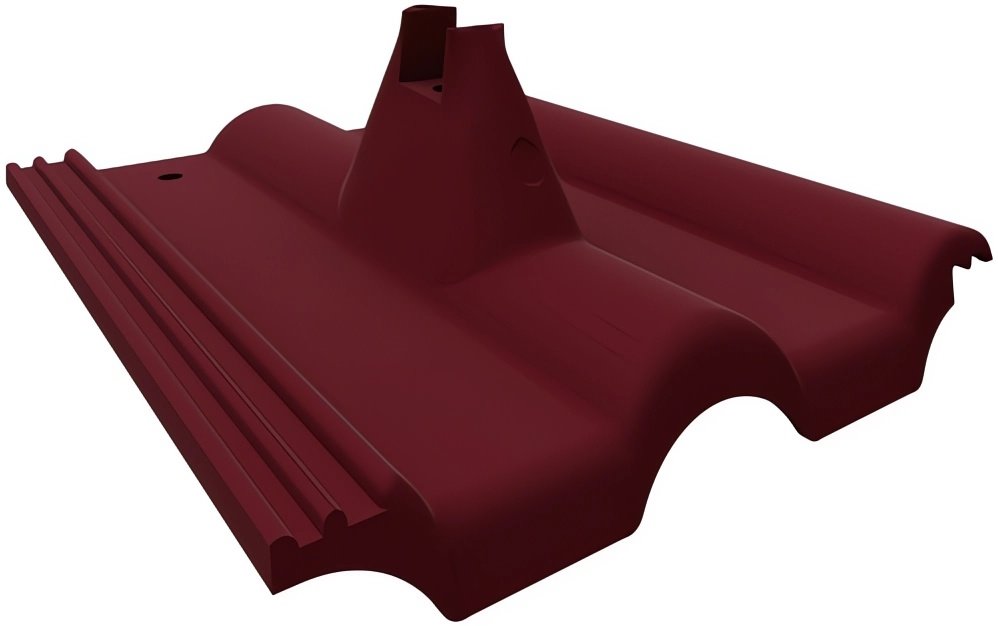

Akusolar roof tile KM Beta (Bramac) with bracket, burgundy red RAL 3005

Akusolar roof tiles of the KM Beta (Bramac) type with an integrated bracket offer a top solution for easy and gentle photovoltaic installation. Thanks to the option to replace tiles one by one, there is no need to grind the original roofing, which preserves the aesthetic appearance of the roof. The bracket allows easy attachment of a structure compatible with 40 × 40 mm and 40 × 45 mm profiles. The roof tiles in burgundy red (RAL 3005) with a traditional KM Beta (Bramac) look are an ideal choice for elegant and functional integration of PV systems on pitched roofs.

Key features

• Dimensions: 417 x 335 mm
• For 40 x 40 mm profile (40 x 45 mm profile with EPDM sealing)
• Withstands uplift forces up to 850 kg
• Significantly speeds up installation
• No water leakage into the roof
• Positioned under the panels, it does not disrupt the roof's aesthetic appearance
