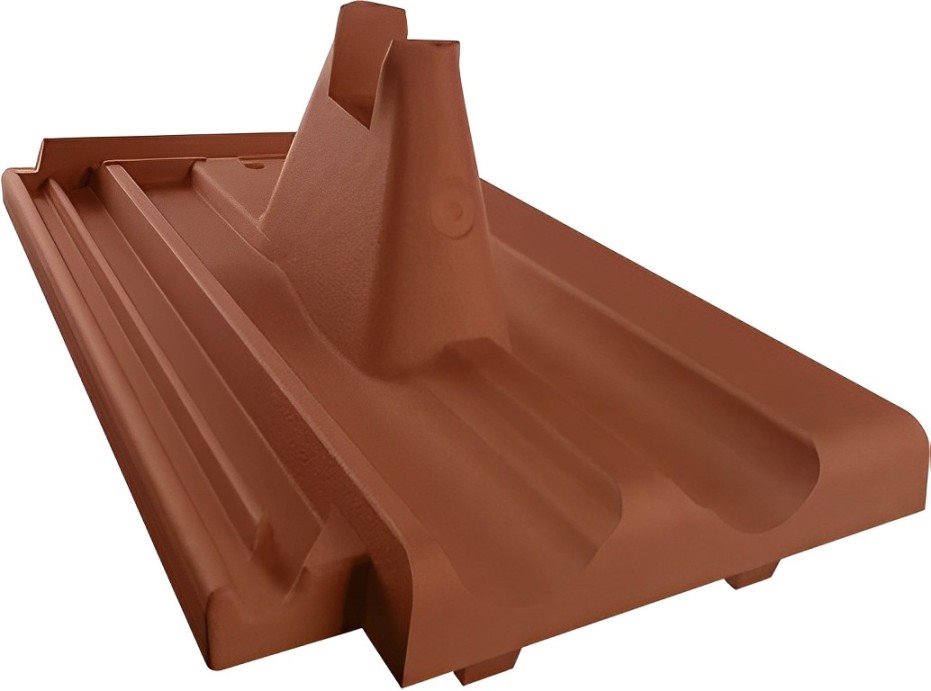

Akusolar roof tile Tondach (Brněnka) with bracket, brick RAL 8023

Akusolar roof tiles of the Tondach (Brněnka) type with an integrated bracket represent a top solution for a simple and economical installation of photovoltaics. Thanks to the possibility of replacing the tiles piece by piece, it is not necessary to grind the original roof coverings, which preserves the aesthetic appearance of the roof. The bracket allows easy attachment of the structure compatible with 40 × 40 mm and 40 × 45 mm profiles. Roof tiles in brick color (RAL 8023) match the traditional Tondach (Brněnka) look, and are therefore an ideal choice for elegant and functional integration of PV systems on pitched roofs.

Key features

• Dimensions: 400 x 242 mm
• For 40 x 40 mm profile (40 x 45 mm profile using EPDM gasket)
• Resistant to buoyancy forces up to 850 kg
• Significantly faster installation
• No leaks into the roof
• Placed under the panels, it does not disrupt the aesthetic appearance of the roof
