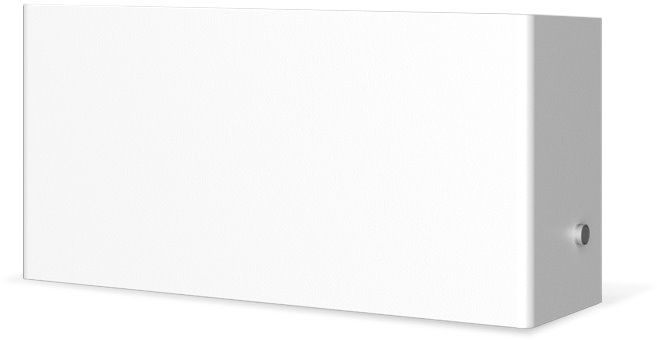

AUXSOL ABL-P05H-H02 Battery module, 5.3 kWh, HV

The high-performance battery cell with a capacity of 5.3 kWh is a key component of the AUXSOL modular energy storage system, designed for compatibility with AUXSOL three-phase hybrid inverters. It utilizes modern lithium iron phosphate technology (LiFePO4), which ensures a long lifespan of over 6,000 charging cycles and stable performance over the years. The modular design allows for the assembly of a tower with a capacity ranging from 10.6 to 26.5 kWh (2 to 5 modules), simply by adding additional modules as needed by the facility.

Safe and smart solution for everyday operation

The robust design with IP65 protection ensures high resistance to dust and moisture, allowing for installation even in demanding conditions. With 85% depth of discharge (DoD), the usable capacity is significantly higher than that of conventional systems, leading to better utilization of stored energy and cost optimization. The module is fully compatible with the ABL-BDU-H02 control module, forming an intelligent system with remote diagnostics and updates. An ideal choice for those who want to keep energy under control today and tomorrow.

Key Features

• Capacity of 5.3 kWh per module (2 to 5 in series)
• Lifespan of over 6,000 cycles thanks to LiFePO4 technology
• Depth of discharge up to 85% (higher usable capacity)
• Durable IP65 protection – suitable for demanding conditions
• Modular configuration from 10.6 to 26.5 kWh
• Compatible with the ABL-BDU-H02 control module
• Support for remote diagnostics and updates
• Electricity cost optimization
