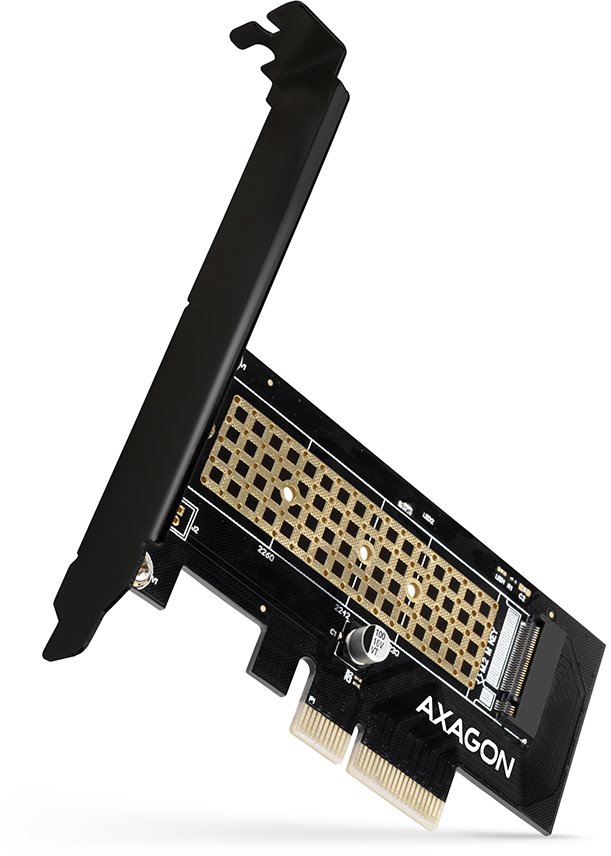

AXAGON PCEM2-N, Internal M.2 NVMe slot, PCIe controller

The internal adapter AXAGON PCEM2-N allows you to connect an M.2 SSD to a desktop computer via the PCI-Express bus. High-quality construction, compact dimensions, and a thoughtful design make the adapter an ideal choice for upgrading a desktop computer that is not equipped with an M.2 slot.

The adapter supports the use of NVMe (PCI-Express) M.2 SSDs, both single-sided and double-sided. The adapter has no capacity limitations for SSDs and supports M.2 cards up to 22x80 mm in size. Thanks to the PCI-Express interface compatible with x4, x8, and x16 slots, maximum transfer speeds can be achieved.

A thermal pad and copper-ventilation holes help dissipate heat generated during the operation of M.2 SSDs. An LED indicator signals the connection or data transfer in the M.2 slot. A low-profile bracket is included for mounting the adapter in low-profile cases.

Interface

• INPUT: PCI-Express interface, compatible with PCI-Express versions 4.0 / 3.0 / 2.1 / 2.0 / 1.1 / 1.0a, 4-Lane design, compatible with x4 / x8 / x16 PCIe slots.
• OUTPUT: NGFF 75-pin M-key slot for mounting NVMe (PCI-Express) M.2 SSDs.

Additional Features:

• Full Plug and Play support.
• Support for M.2 SSD dimensions: 2230, 2242, 2260, 2280 mm.
• Support for M key or B+M key NVMe (PCI-Express) M.2 SSDs without capacity limitations.
• Support for both single-sided and double-sided M.2 SSDs.
• Improved heat dissipation through copper-ventilation holes and a thermal pad.
• Boot support from the SSD card.
• Dimensions: 105 x 49 x 8 mm.
• No driver installation required.

Supported Operating Systems

MS Windows 7 / 8 / 8.1 / 10 / 11, Windows Server 2008 R2 / 2012 / 2016 (all 32-bit and 64-bit versions of Windows OS supported), Linux with kernel 2.6.31 or higher. Note: When using Windows 7, verify with the manufacturer of the M.2 SSD for OS support.

Package Contents

• PCI-Express adapter with standard bracket
• Low-profile bracket
• Mounting materials
