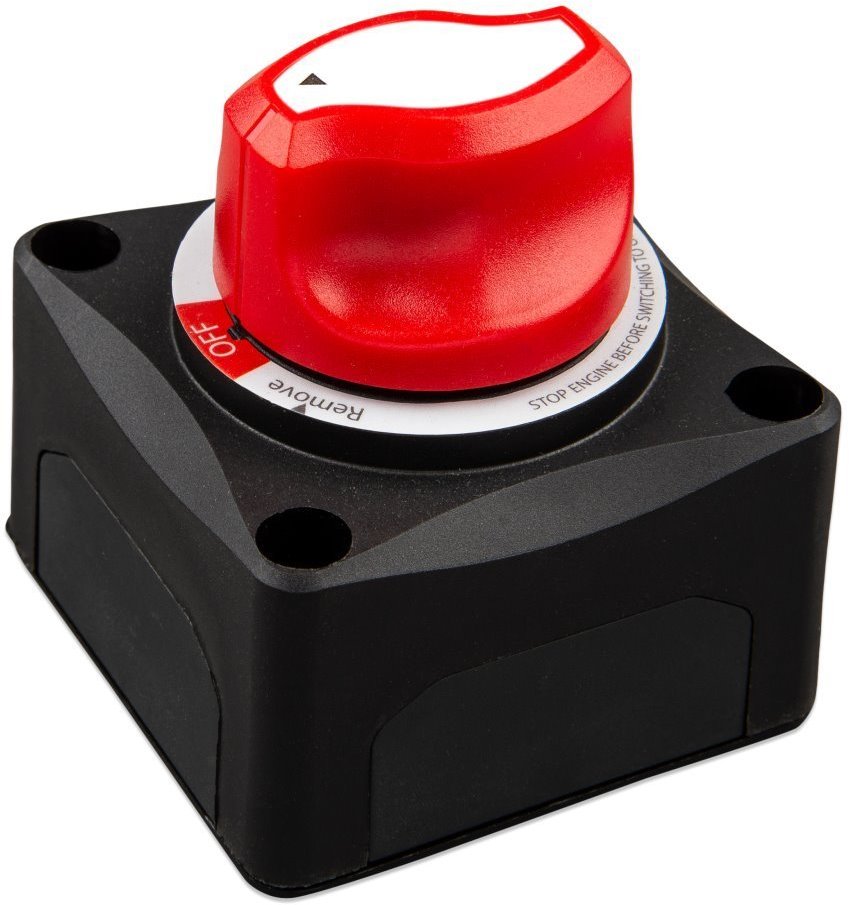

Battery switch ON/OFF 275A

The battery disconnect switch is used to disconnect the positive battery terminal from the DC system. The knob is removable for safety reasons or to allow additional insulation. The disconnect meets ISO8846 standard (ignition protection) and is suitable for industrial environments.

• Suitable for battery systems up to 48 V
• Removable knob
• Screw/terminal diameter: 9.53 mm
• Mounting type: surface or rear panel mounting
• Standards: ISO8846 and SAE J1171
• Material (screws and nuts): plated copper
• Base material: nylon reinforced with fiberglass
• Max continuous current: 275 A
• Max current for 1 minute: 455 A
• Max starting current: 1250 A
• Rated voltage: up to 48 V
