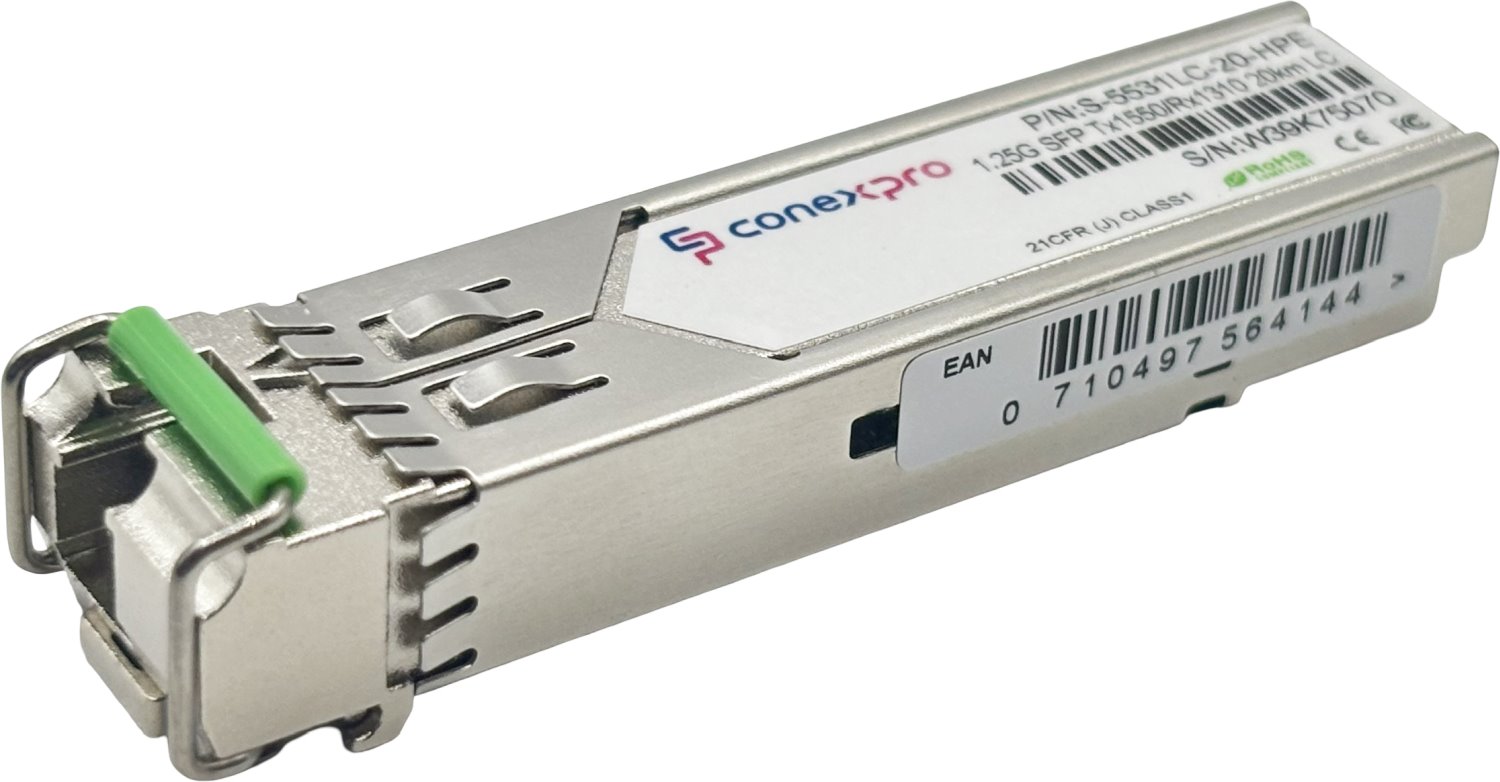

Conexpro 1.25G SFP optical module, WDM/BiDi, SM, Tx1550/Rx1310nm, 20km, 1x LC, DDM - HPE

Gigabit WDM/Bidi Singlemode SFP module from manufacturer Conexpro with wavelength (Tx/Rx) 1550/1310 nm, speed 1 Gbps, equipped with one LC connector with UPC polish, designed for connection at distance 20 km. The module is specially modified and is only compatible with HPE Aruba Networking ProCurve devices and other brands according to MSA standard. Of course, it supports optical link diagnostics using DDM (Digital Diagnostic Monitoring).

For the optical link to function correctly, it is necessary to have an SFP module with opposite wavelengths (Tx = 1310 nm, Rx = 1550 nm) on the other side of the optical path.

HPE compatibility

The modules are fully compatible with HPE Aruba Networking ProCurve switches with operating systems AOS-S (2510, 2520, 2530, 2540, 2600, 2610, 2620, 2930, 3810) and AOS-CX (6200, 6300, 6400, 83xx, 84xx, 93xx, 81xx). Compatibility is ensured by modifying the EEPROM for proper identification in HPE devices, allowing for seamless operation without warnings about non-original modules.
