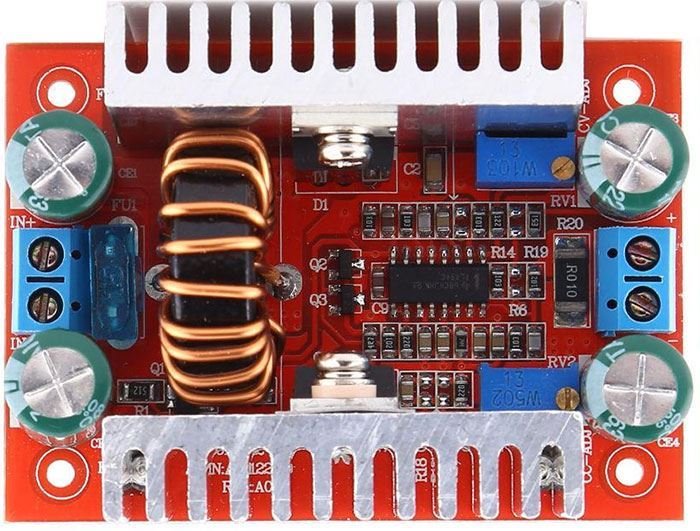

Conexpro step-up voltage converter, input 8-50V, output 12-60V, 12A, 400W

The powerful non-isolated step-up converter allows you to increase the voltage from 8.5 to 50V to adjustable 12–60V (the output voltage will be equal to or greater than the input voltage). It provides a continuous output current of up to 7A with the possibility of a peak load of 12A with active cooling. With efficiency up to 95%, it minimizes energy loss and ensures efficient operation. Compact dimensions of 67 × 47 × 27 mm, including passive cooling, allow easy integration into various DIY applications. The device requires professional installation.

• Input voltage: 8.5 to 50 V
• Output voltage: 12 to 60 V – adjustable
• Output current: 7A / 12A max. with active cooling
• Dimensions: 37 × 47 × 27 mm
