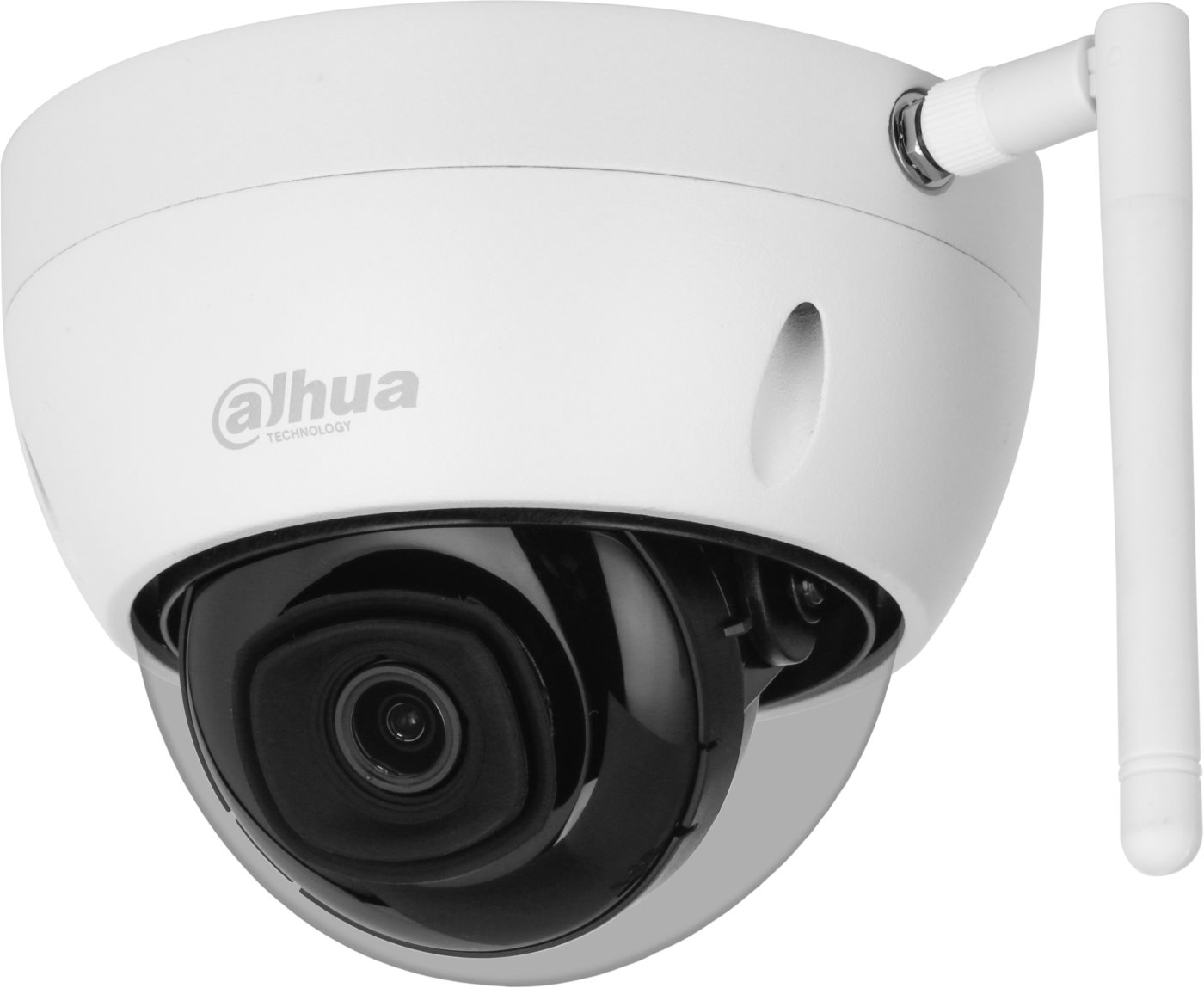

Dahua IP dome camera IPC-HDBW1230DE-SW-0280B, 2Mpx, 2.8mm, Wi-Fi

Wi-Fi IP camera from the Wireless series in a dome design offers 2 Mpx resolution, a fixed 2.8 mm lens, a wide viewing angle of up to 100°, 2.4 GHz Wi-Fi, and IR lighting with a range of 30 meters. The camera optimizes data flow using smart codecs H.265+ and H.264+. It features motion detection and is controllable via a web browser, NVR, or the DMSS mobile app. It supports microSD cards up to 256 GB and is suitable for outdoor use due to IP67 and IK10 certifications against vandalism. Power is provided only via a 12 V DC jack, and communication is via 10/100 Mbps Ethernet or Wi-Fi.

Key features

• IR lighting with a range of up to 30 m
• 1/2.8" CMOS sensor, progressive scan
• 0.025 Lux @ (F2.0, Color) or 0.0025 Lux @ (F2.0, B/W)
• 2 Mpx resolution (1920 x 2160 px @ 30 fps)
• Image dynamics - Digital WDR
• microSD card slot (max. 256 GB)
• Power only via 12 V DC jack
• IP67 protection rating + IK10 anti-vandal protection
• Integrated 2.4 GHz Wi-Fi, 802.b/g/n, removable antenna

Software and applications

A free software SmartPSS Lite is available for managing IP devices such as NVRs and IP cameras. It allows easy device searching, live view monitoring of channels, recording of selected channels according to specified criteria, and playback of recordings. In addition, there is an app DSS Express that offers more features, is free for up to 10 connected clients, and is built on a client-server architecture. The more advanced DSS Pro is already licensed and offers many more analytical features. For mobile access, there is the DMSS app, which can be downloaded from official app stores (Play Store/Apple App Store).
