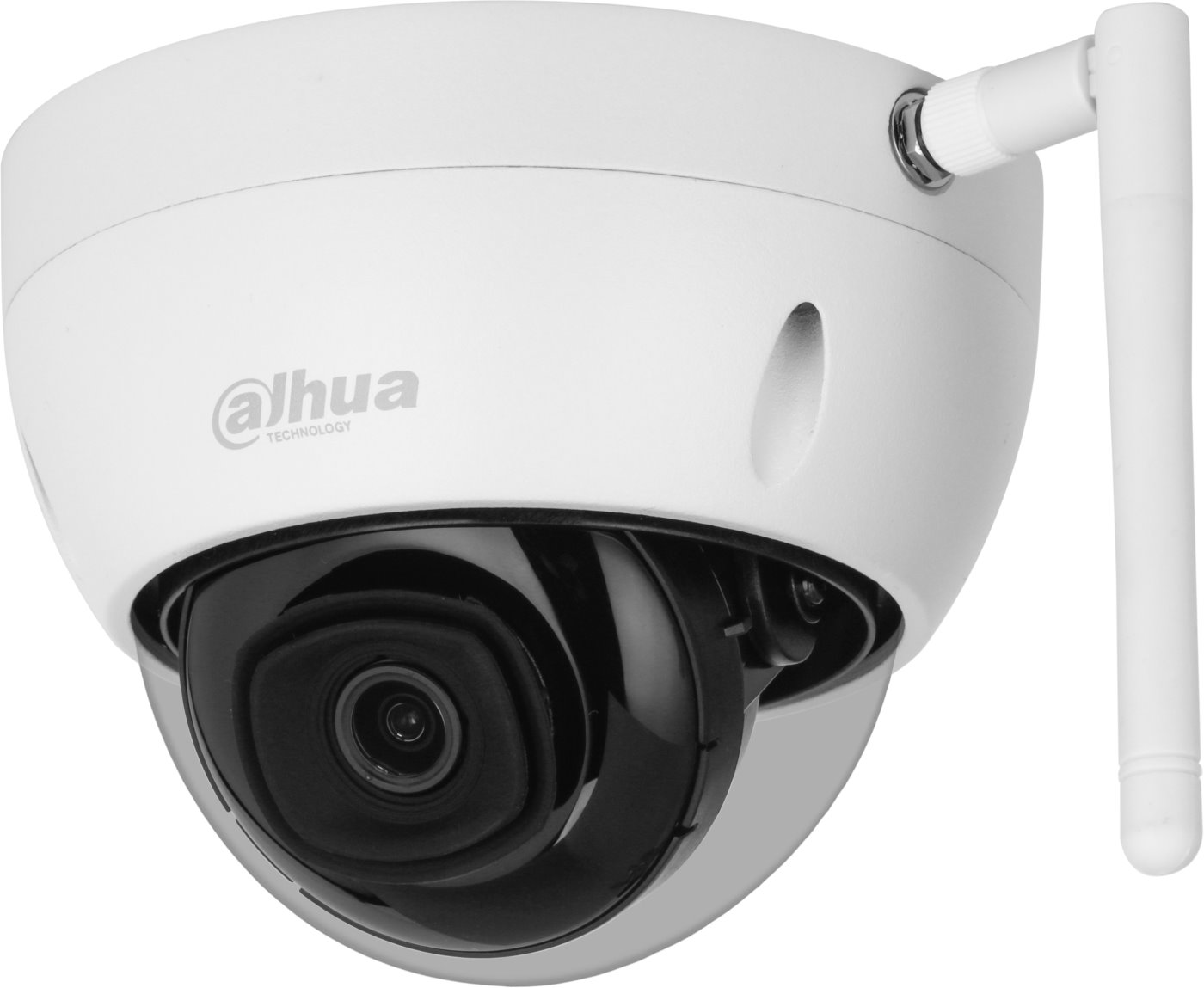

Dahua IP dome camera IPC-HDBW1430DE-SW-0280B, 4Mpx, 2.8mm, Wi-Fi

Wi-Fi IP camera from the Wireless series in dome design offers 4 Mpx resolution, a fixed 2.8 mm lens, a wide field of view up to 90°, 2.4 GHz Wi-Fi, and IR illumination with a range of 30 meters. The camera optimizes data flow using smart codecs H.265+ and H.264+. It features motion detection and can be controlled via a web browser, NVR, or the DMSS mobile app. It supports microSD cards with a capacity of up to 256 GB and is suitable for outdoor use due to IP67 and IK10 certifications against vandalism. Power is only possible through a 12 V DC jack and communication via 10/100 Mbps ethernet or Wi-Fi.

Key features

• IR illumination with a range of up to 30 m
• 1/3" CMOS image sensor, progressive scan
• 0.03 Lux @ (F2.0, Color) or 0.003 Lux @ (F2.0, B/W)
• 4 Mpx resolution (2560 x 1440 px @ 20 fps)
• Image dynamics - Digital WDR
• Slot for microSD card (max. 256 GB)
• Power only via 12 V DC jack
• IP67 protection class + IK10 anti-vandal protection
• Integrated 2.4 GHz Wi-Fi, 802.b/g/n, removable antenna

Software and applications

The device comes with free software SmartPSS Lite for managing IP devices, such as NVRs and IP cameras. It allows for easy device discovery, monitoring live channel feeds, recording selected channels based on specified criteria, and playback of recordings. Additionally, the DSS Express app is available, offering more features, free for up to 10 connected clients, and is built on a client-server architecture. The more advanced DSS Pro is licensed and provides many more analytical functions. For mobile access, the DMSS app is available for download from official app stores (Play Store/Apple App Store).
