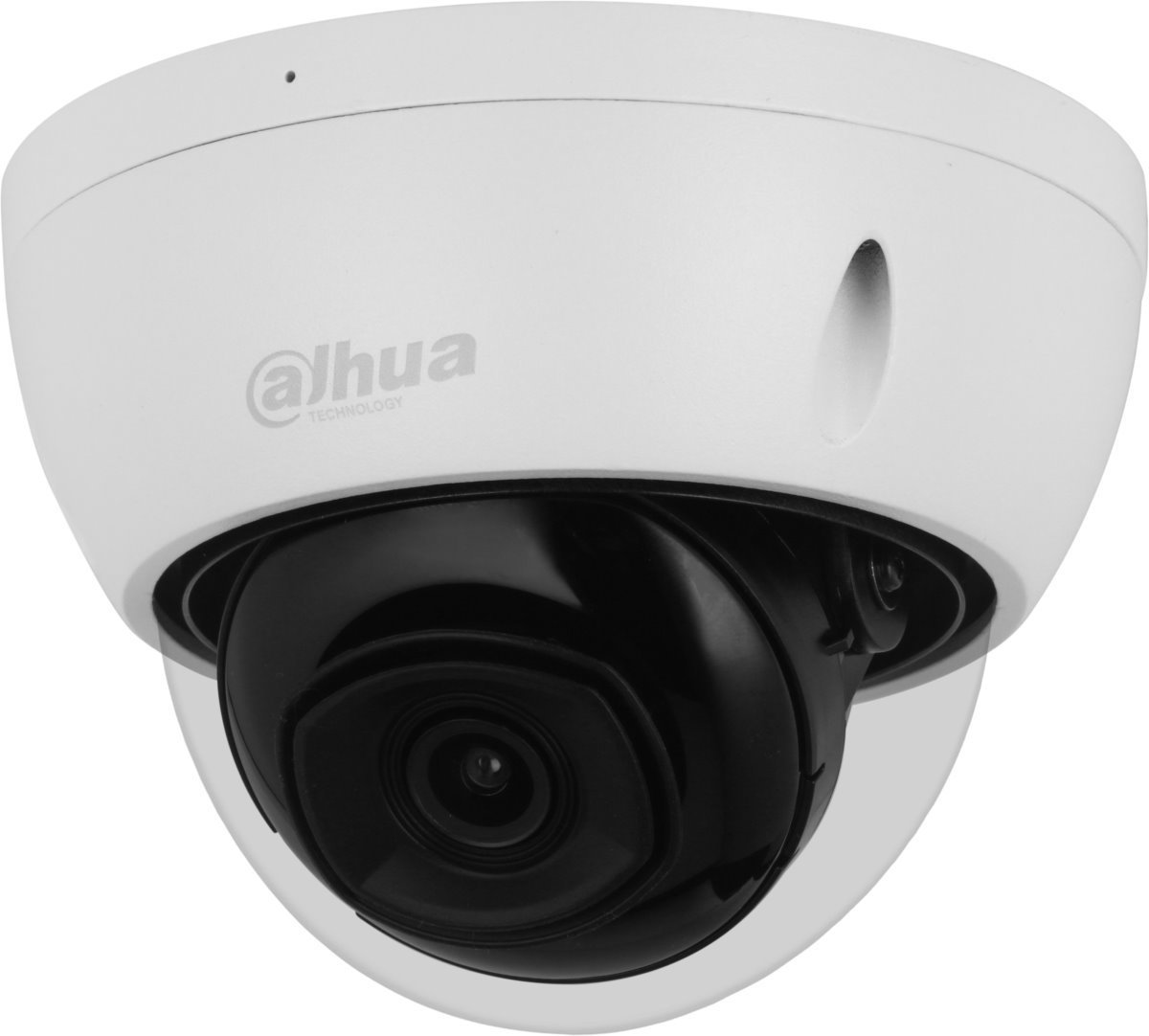

Dahua IP dome camera IPC-UDBW3458E-S-0280B, 4Mpx, 2.8mm, SMD+

The IP camera from the WizSense 2 series in a dome design offers a resolution of 4 Mpx, a fixed 2.8 mm lens, a wide field of view up to 106°, and IR illumination with a range of 30 meters. The camera optimizes data flow using smart codecs H.265+ and H.264+. It features intelligent video analytics (SMD+) and can be controlled via a web browser, NVR, or the DMSS mobile app. It supports microSD cards with a capacity of up to 256 GB and is suitable for outdoor use due to IP67 and IK10 certifications against vandalism. Power can be supplied via 12 V DC or PoE (802.3af).

Key Features

• IR illumination with a range of up to 30 m
• 1/2.9" CMOS image sensor, progressive scan
• 0.006 Lux @ (F1.6, Color) or 0.0006 Lux @ (F1.6, B/W)
• Resolution of 4 Mpx (2688 x 1520 px @ 20 fps) / 2560 x 1440 px @ 30 fps
• Image dynamic range - 120 dB WDR
• Integrated microphone
• MicroSD memory card slot (max. 256 GB)
• Power supply 12 V DC or 802.3af PoE
• IP67 protection rating + IK10 anti-vandal protection
• Support for SMD+ motion detection (Smart Motion Detection Plus), enhanced motion detection - of people and vehicles, elimination of false alarms from tree movement in the wind, animals, etc.

Video Analytical Functions

The camera has sophisticated video analytical tools that include features such as virtual line, intrusion detection, and recognition of vehicles and people. These advanced features are accessible via the camera's web interface.

Software and Applications

A free software SmartPSS Lite is available for the device, which serves for managing IP devices such as NVRs and IP cameras. It allows easy device discovery, live viewing of channel images, recording of selected channels according to specified criteria, and playback of recordings. Additionally, the DSS Express app is available, which offers more features; it's free for up to 10 connected clients and is built on a client-server architecture. The more advanced DSS Pro is licensed and offers many more analytical functions. For mobile access, the DMSS app is available for download from official app stores (Google Play/Apple App Store).
