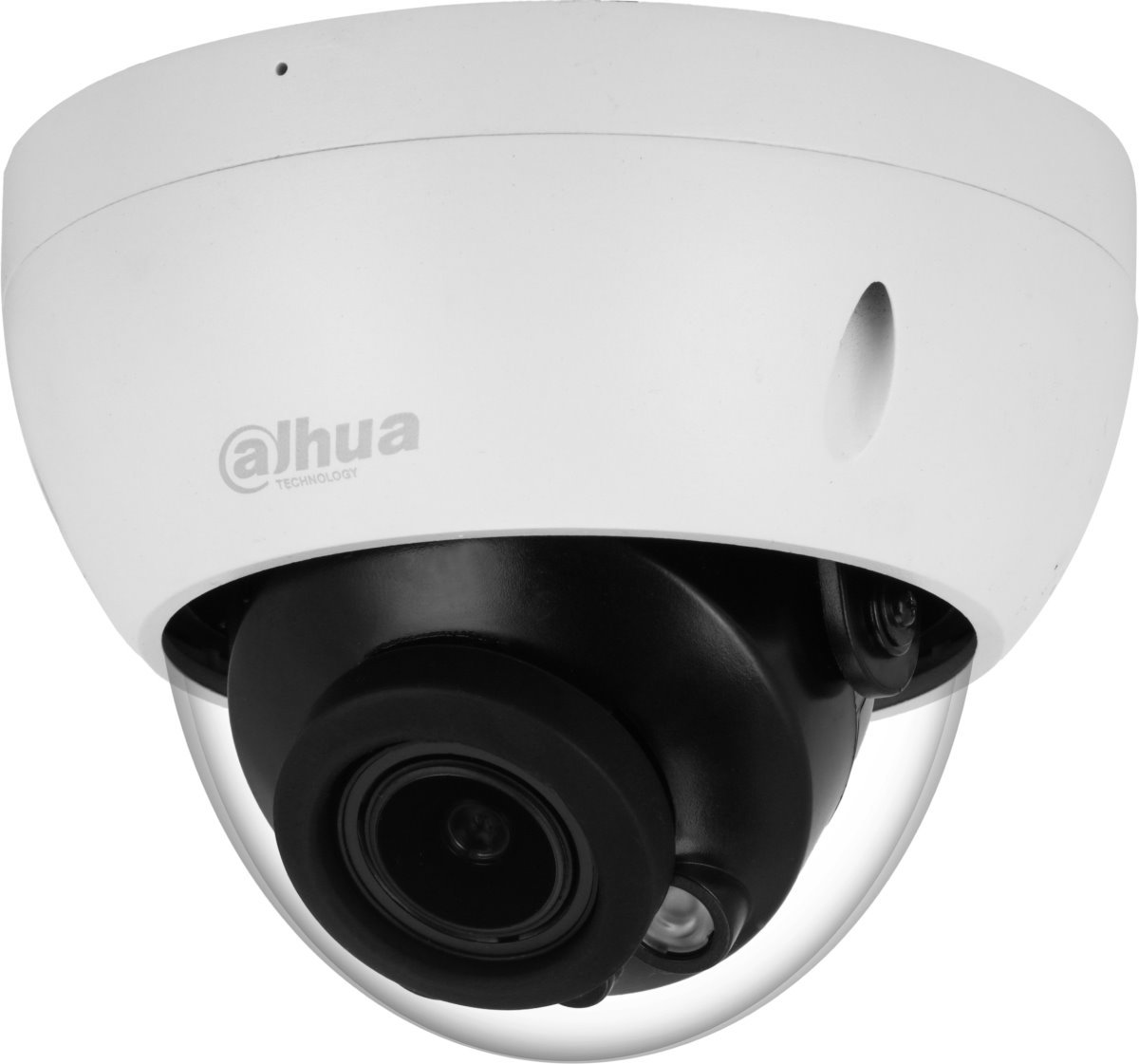

Dahua IP dome camera IPC-UDBW3558R-ZAS-27135-S2, 5Mpx, 2.7-13.5mm, SMD+

The IP camera from the WizSense 2 series in a dome version offers resolution of 5 Mpx, a varifocal motorized lens of 2.7 to 13.5 mm, a field of view of 31 to 113°, IR illumination with a range of 40 meters, audio (microphone, 1x input, 1x output), and alarm (1x input, 1x output). The camera optimizes data flow using smart codecs H.265+ and H.264+. It features intelligent video analysis (SMD+) and can be controlled via a web browser, NVR, or the DMSS mobile app. It supports microSD cards up to 256 GB, is suitable for outdoor use due to IP67 certification, and has IK10 anti-vandal protection against impacts. Power can be supplied via 12 V DC or PoE (802.3af).

Key Features

• IR illumination with a range of up to 40 m
• Image sensor 1/2.7" CMOS, progressive scan
• Motorized lens 2.7 to 13.5 mm (31 to 113°)
• 0.007 Lux @ (F1.5, Color) or 0.0007 Lux @ (F1.5, B/W)
• Resolution of 5 Mpx (2960 x 1668 px @ 20 fps) / 2688 x 1520 px @ 30 fps
• Image dynamics - 120 dB WDR
• Integrated microphone + 1x input + 1x output
• Alarm 1x input + 1x output
• Slot for microSD memory card (max. 256 GB)
• Power supply 12 V DC or 802.3af PoE
• Protection rating IP67 + IK10 anti-vandal protection against impacts
• Support for SMD+ motion detection (Smart Motion Detection Plus), enhanced motion detection of people and vehicles, elimination of false alarms from moving trees in the wind, animals, etc.

Video Analytical Functions

The camera has implemented sophisticated video analytical tools, which include features such as virtual fence, intrusion detection, vehicle and person recognition. These advanced features are accessible through the camera's web interface.

Software and Applications

Software SmartPSS Lite is available for the device for free, which serves to manage IP devices, such as NVRs and IP cameras. It allows for easy device discovery, live image monitoring of channels, recording of selected channels based on specified criteria, and playback of recordings. Additionally, the DSS Express app is available, which offers more features, is free for up to 10 connected clients, and is built on a client-server architecture. The more advanced DSS Pro is already licensed and offers many more analytical functions. For mobile access, the DMSS app is available for download from official app stores (Google Play/Apple App Store).
