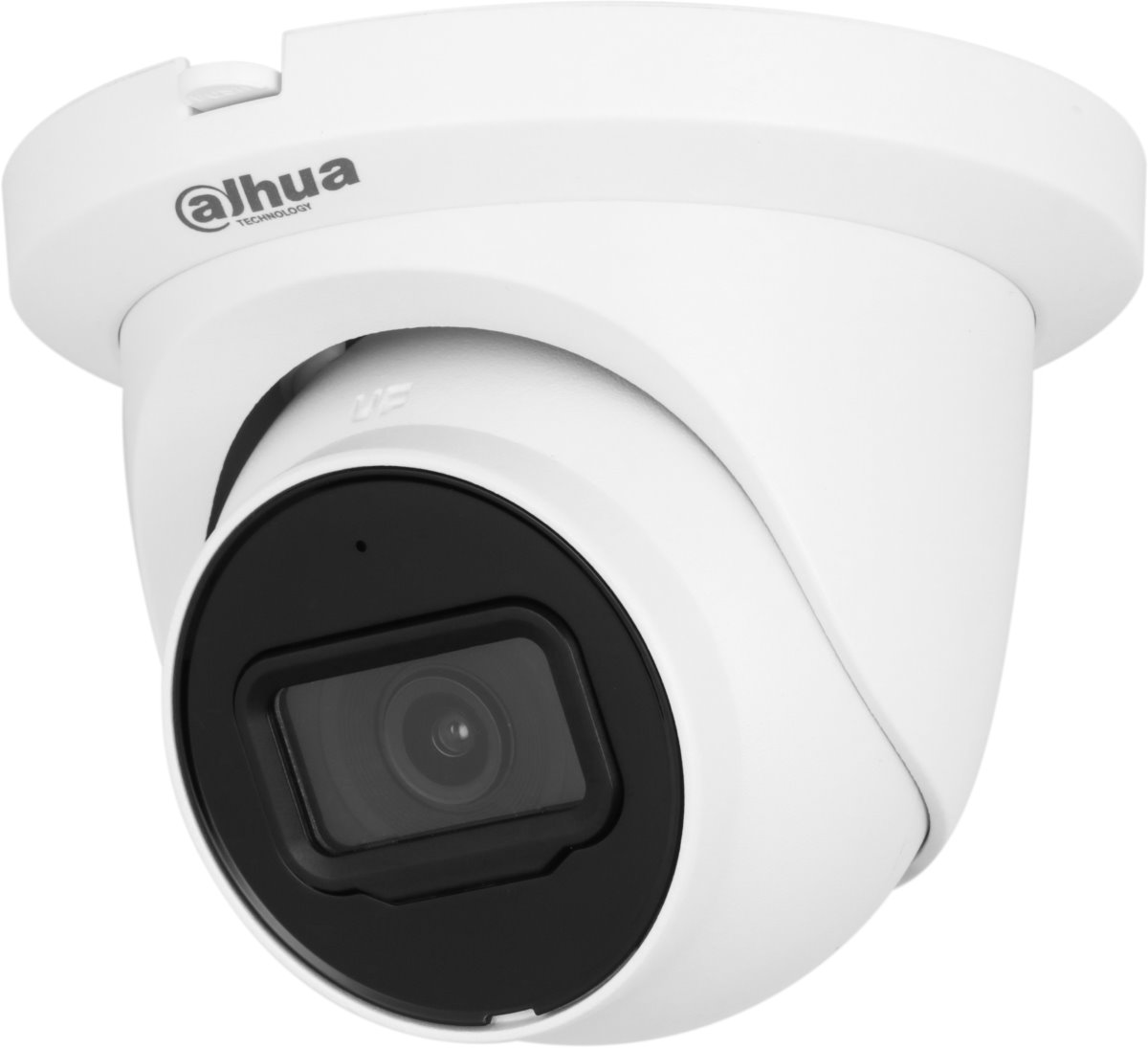

Dahua IP turret camera IPC-HDW2449TM-S-0280B, 4Mpx, 2.8mm, SMD+

IP camera from the WizSense 2 series in turret design offers a resolution of 4 Mpx, a fixed 2.8 mm lens, a wide viewing angle of up to 95°, and IR illumination with a range of 30 meters. The camera optimizes data flow using smart codecs H.265+ and H.264+. It features intelligent video analytics (SMD+) and can be controlled via a web browser, NVR, or the DMSS mobile application. It supports microSD cards up to 256 GB in capacity and is suitable for outdoor use due to its IP67 certification. Power can be supplied using 12 V DC or PoE (802.3af).

Key Features

• IR illumination with a range of up to 30 m
• Image sensor 1/2.9" CMOS, progressive scan
• 0.006 Lux @ (F1.6, Color) or 0.0006 Lux @ (F1.6, B/W)
• Resolution 4 Mpx (2688 x 1520 px @ 20 fps) / 2560 x 1440 px @ 30 fps
• Dynamic range - 120 dB WDR
• Integrated microphone
• MicroSD card slot (max. 256 GB)
• Power supply 12 V DC or 802.3af PoE
• IP67 protection rating
• Support for SMD+ motion detection (Smart Motion Detection Plus), enhanced motion detection - of people and vehicles, elimination of false alarms from moving trees in the wind, animals, etc.

Video Analytical Functions

The camera is equipped with sophisticated video analytical tools, which include functions such as virtual fence, intrusion detection, vehicle and person recognition. These advanced functions are accessible via the camera's web interface.

Software and Applications

A free software SmartPSS Lite is available for device management, including NVRs and IP cameras. It allows for easy device searching, live channel monitoring, recording of selected channels based on specified criteria, and playback of recordings. Additionally, the DSS Express application is available, offering more features; it is free for up to 10 connected clients and is based on a client-server architecture. The more advanced DSS Pro is licensed and offers many more analytical features. For mobile access, the DMSS application is available for download from official app stores (Google Play/Apple App Store).
