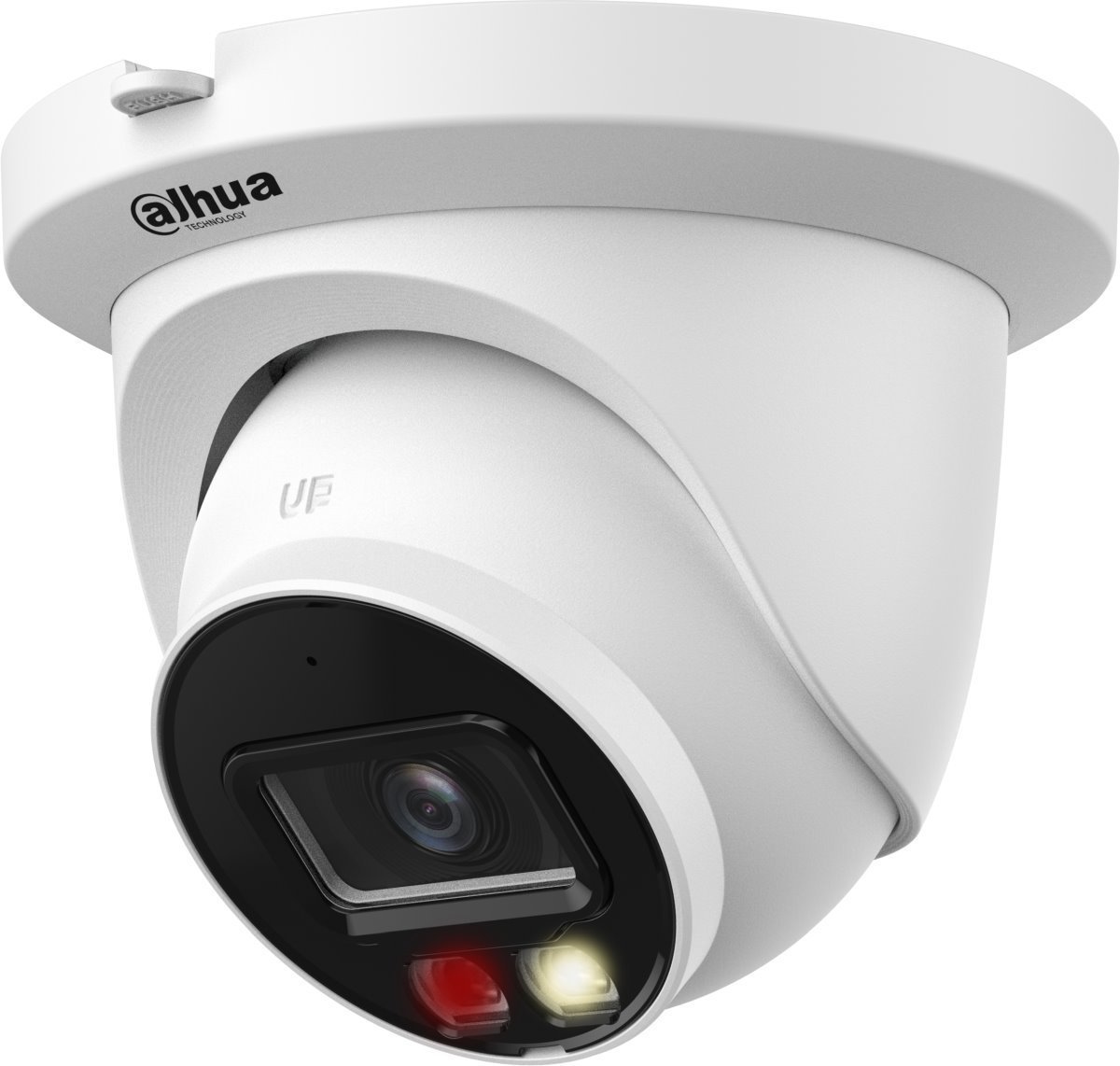

Dahua IP turret camera IPC-HDW2549TM-S-IL-0280B, 5Mpx, 2.8mm, Full-Color, SMD+

The IP camera from the WizSense 2 series in Turret (Eyeball) design offers 5 Mpx resolution, color image even in poor light conditions (0.007 Lux), a fixed 2.8 mm lens, a wide field of view up to 111°, and a combined IR + LED illuminator (Warm light) with a range of 30 meters. The camera optimizes data flow using smart codecs H.265+ and H.264+. It features intelligent video analytics (SMD+) and can be controlled via a web browser, NVR, or the DMSS mobile application. It supports microSD cards with a capacity of up to 256 GB and is suitable for outdoor use thanks to IP67 certification. Power supply is possible via 12 V DC or PoE (802.3af).

Key Features

• Full-color with combined illumination (IR + LED)
• Image sensor 1/2.7" CMOS, progressive scan
• 0.007 Lux @ (F1.6, Color) or 0.0007 Lux @ (F1.6, B/W)
• Resolution 5 Mpx (2960 x 1668 px @ 20 fps) / 2688 x 1520 px @ 30 fps
• Dynamic range - 120 dB WDR
• Integrated microphone
• Slot for microSD memory card (max. 256 GB)
• Power supply 12 V DC or 802.3af PoE
• IP67 protection rating
• Support for SMD+ motion detection (Smart Motion Detection Plus), enhanced motion detection - of people and vehicles, false alarm elimination from tree movement in the wind, animals, etc.

Video Analytical Functions

The camera has sophisticated video analytical tools implemented, which include features such as virtual fence, intrusion detection, and vehicle and person recognition. These advanced functions are accessible via the camera's web interface.

Software and Applications

A free software SmartPSS Lite is available for the device, which serves for managing IP devices like NVRs and IP cameras. It enables easy device searching, live viewing of channel images, recording selected channels according to specified criteria, and playback of recordings. Additionally, the DSS Express application is also available, which offers more features, is free for up to 10 connected clients, and is built on a client-server architecture. The more advanced DSS Pro is licensed and offers many more analytical functions. For mobile access, the DMSS application is available for download from official app stores (Google Play/Apple App Store).
