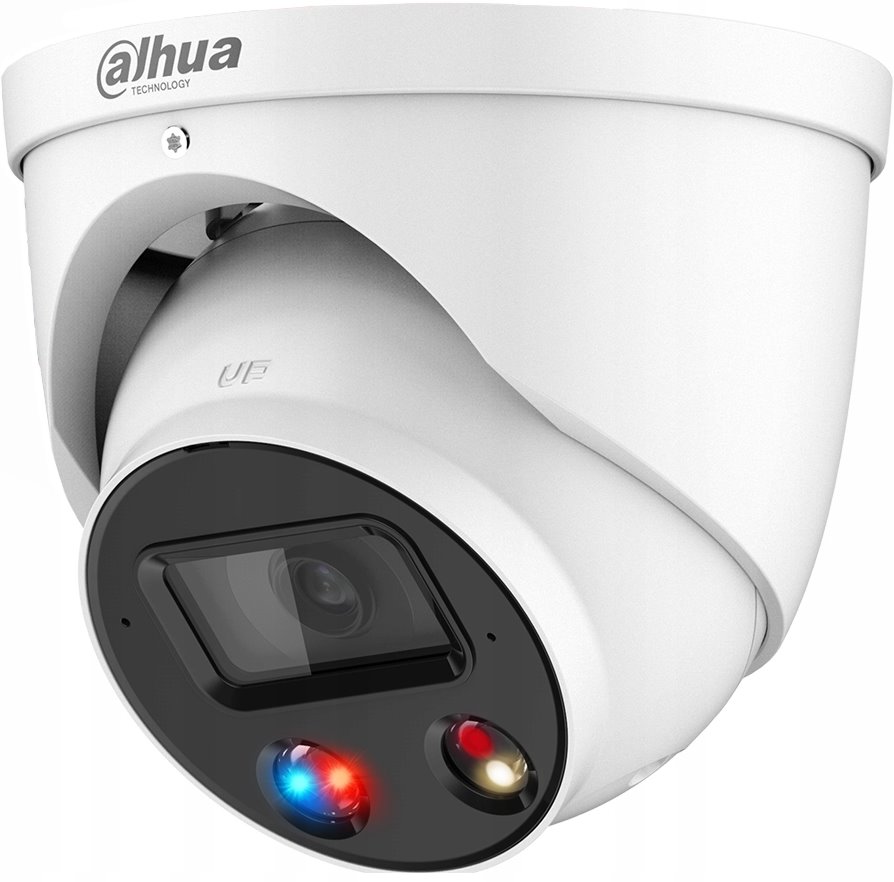

Dahua IP turret camera IPC-HDW3849H-AS-PV-0280B-S5, 8Mpx, 2.8mm, SMD4

The IP camera from the WizSense 3 series in turret design offers 8 Mpx resolution, a fixed 2.8 mm lens, a field of view of 106°, a combined dual IR + LED illumination (Warm light) with a range of 30 meters (both IR and LED), a siren with a light alarm, audio (microphone, speaker, 1x input, 1x output), and alarm (1x input, 1x output). The camera optimizes data flow using smart codecs H.265+ and H.264+. It features intelligent video analysis (SMD 4.0) with enhanced motion detection and is controllable via a web browser, NVR, or the DMSS mobile app. It supports microSD cards up to 256 GB and is suitable for outdoor use thanks to IP67 certification. Power can be supplied via 12 V DC or PoE (802.3af).

Key Features

• Range of dual illumination 30 m (both IR and LED)
• Sensitive 1/2.7" CMOS Starlight sensor, progressive scan
• 0.004 Lux @ (F1.0, Color) or 0.0004 Lux @ (F1.0, B/W)
• 8 Mpx resolution (3840 x 2160 px @ 30 fps)
• Image dynamics - 120 dB WDR
• Integrated microphone + speaker + 1x input + 1x output
• Alarm 1x input + 1x output
• Active siren and light upon perimeter breach
• MicroSD card slot (max. 256 GB)
• Power supply 12 V DC or 802.3af PoE
• IP67 protection rating
• Quick Pick function and AI SSA (AI Scene Self-adaptation)
• Support for SMD 4.0 motion detection (Smart Motion Detection), enhanced motion detection - of people and vehicles, elimination of false alarms from tree movement in the wind, animals, etc.

Video Analytic Functions

The camera has sophisticated video analytic tools implemented, including functions such as virtual fence, intrusion detection, vehicle and person recognition. These advanced functions are accessible through the camera's web interface.

Software and Applications

Free software SmartPSS Lite is available for managing IP devices such as NVRs and IP cameras. It allows easy device search, monitoring live images of channels, recording selected channels based on given criteria, and playback of recordings. Additionally, the DSS Express app is available, which offers more features, is free for up to 10 connected clients, and is built on a client-server architecture. The more advanced DSS Pro is already licensed and offers many more analytic functions. For mobile access, the DMSS app is available for download from official app stores (Google Play/Apple App Store).
