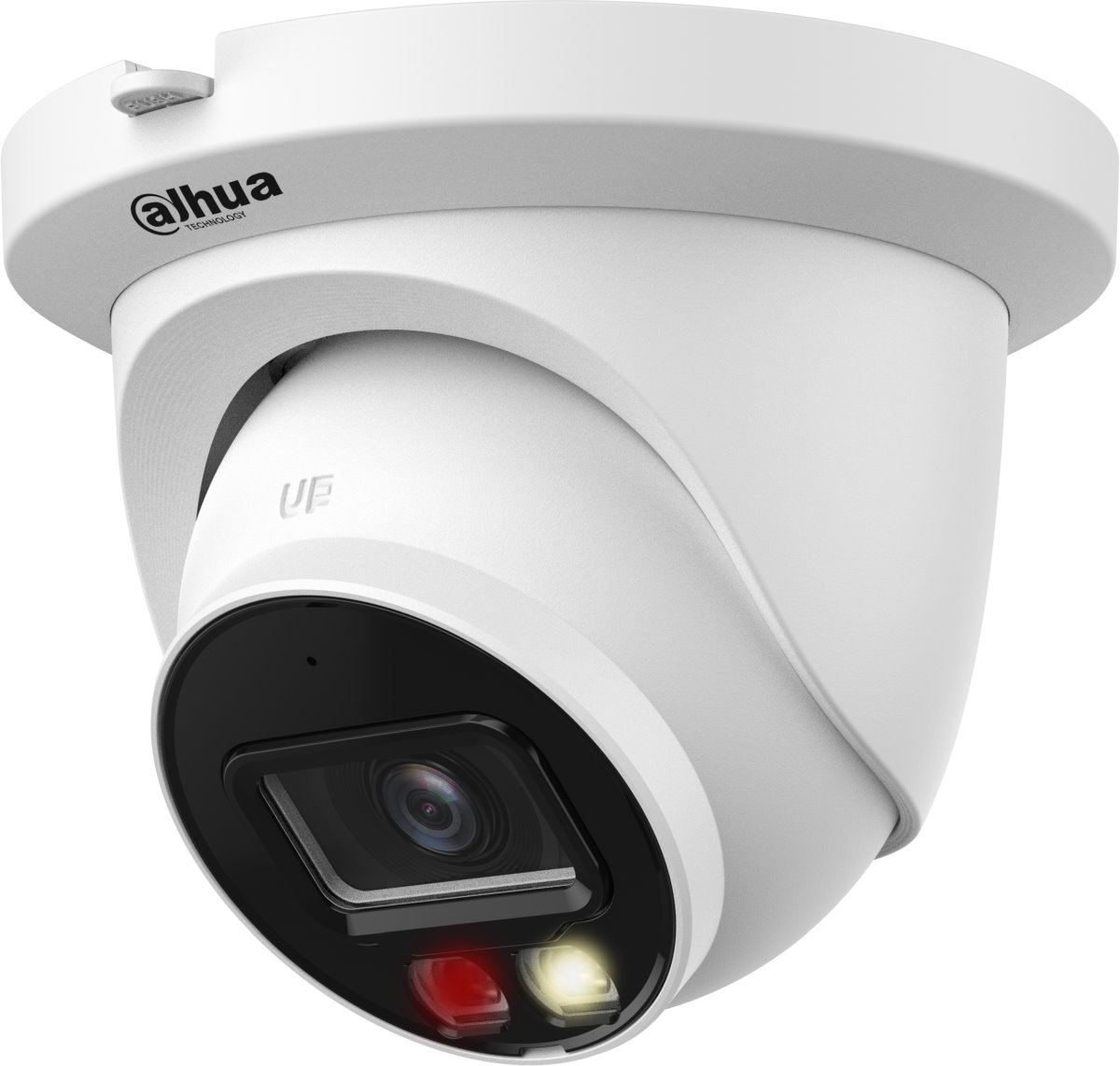

Dahua IP turret camera IPC-UDW3259TM-S-IL-0280B, 2Mpx, 2.8mm, Full-Color, SMD+

The IP camera from the WizSense 2 series in Turret (Eyeball) design offers 2 Mpx resolution, color images even in poor lighting conditions (0.002 Lux), a fixed 2.8 mm lens, a wide field of view of up to 107°, and a combined IR + LED illumination (Warm light) with a range of 30 meters. The camera optimizes data flow using smart codecs H.265+ and H.264+. It features intelligent video analysis (SMD+) and can be controlled via a web browser, NVR, or the DMSS mobile app. It supports microSD cards with a capacity of up to 256 GB and is suitable for outdoor use due to its IP67 certification. Power can be supplied via 12 V DC or PoE (802.3af).

Key Features

• Full-color with combined illumination (IR + LED)
• Image sensor 1/2.8" CMOS, progressive scan
• 0.002 Lux @ (F1.6, Color) or 0.0002 Lux @ (F1.6, B/W)
• Resolution 2 Mpx (1920 x 1080 px @ 30 fps)
• Image dynamics - 120 dB WDR
• Integrated microphone
• MicroSD memory card slot (max. 256 GB)
• Power supply 12 V DC or 802.3af PoE
• IP67 protection rating
• Support for SMD+ motion detection (Smart Motion Detection Plus), enhanced motion detection for people and vehicles, elimination of false alarms from tree movement in the wind, animals, etc.

Video Analytics Features

The camera has sophisticated video analytic tools that include functions such as virtual fence, intrusion detection, vehicle, and person recognition. These advanced features are accessible via the camera's web interface.

Software and Applications

The device comes with the free software SmartPSS Lite, which is used for managing IP devices like NVRs and IP cameras. It allows easy device search, live viewing of channel images, recording selected channels according to specified criteria, and playback of recordings. Additionally, the DSS Express application is also available, offering more features; it is free for up to 10 connected clients and is built on a client-server architecture. The more advanced DSS Pro is licensed and offers many more analytical features. For mobile access, there is the DMSS app, which can be downloaded from official app stores (Google Play/Apple App Store).
