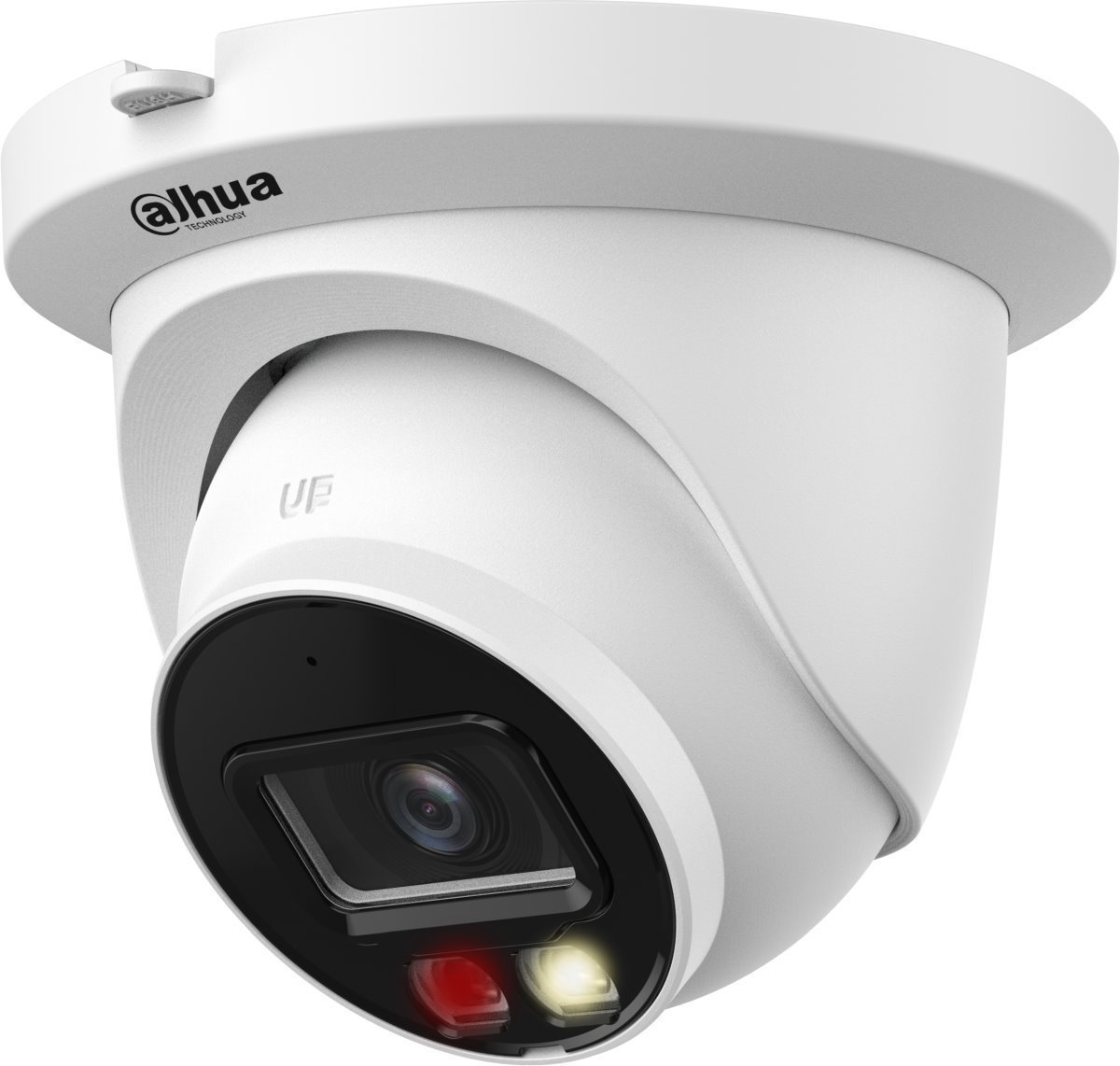

Dahua IP turret camera IPC-UDW3859TM-S-IL-0280B, 8Mpx, 2.8mm, Full-Color, SMD+

The IP camera from the WizSense 2 series in Turret (Eyeball) design offers 8 Mpx resolution, color images even in poor lighting conditions (0.008 Lux), a fixed 2.8 mm lens, a wide field of view of up to 111°, and a combined IR + LED lighting (Warm light) with a range of 30 meters. The camera optimizes data flow using smart codecs H.265+ and H.264+. It features intelligent video analytics (SMD+) and can be controlled via a web browser, NVR, or the DMSS mobile app. It supports microSD cards up to 256 GB and is suitable for outdoor use due to its IP67 certification. Power can be supplied via 12 V DC or PoE (802.3af).

Key Features

• Full-color with combined lighting (IR + LED)
• 1/2.7" CMOS image sensor, progressive scan
• 0.008 Lux @ (F1.6, Color) or 0.0007 Lux @ (F1.6, B/W)
• Resolution 8 Mpx (3840 x 2160 px @ 20 fps) / 2688 x 1520 px @ 30 fps
• Image dynamics - 120 dB WDR
• Built-in microphone
• MicroSD memory card slot (max. 256 GB)
• Power supply 12 V DC or 802.3af PoE
• IP67 protection rating
• Support for SMD+ motion detection (Smart Motion Detection Plus), enhanced motion detection - for people and vehicles, elimination of false alarms from tree movement in the wind, animals, etc.

Video Analytics Functions

The camera features sophisticated video analytics tools, including functions such as virtual fence, intrusion detection, vehicle and person recognition. These advanced features are accessible through the camera's web interface.

Software and Applications

The SmartPSS Lite software is available for free, which serves to manage IP devices such as NVRs and IP cameras. It allows for easy device searching, monitoring live images from channels, recording selected channels based on specified criteria, and playback of recordings. In addition, the DSS Express app is also available, which offers more features, is free for up to 10 connected clients, and is built on a client-server architecture. The more advanced DSS Pro is licensed and offers many more analytical features. For mobile access, the DMSS application is available for download from official app stores (Play Store/Apple App Store).
