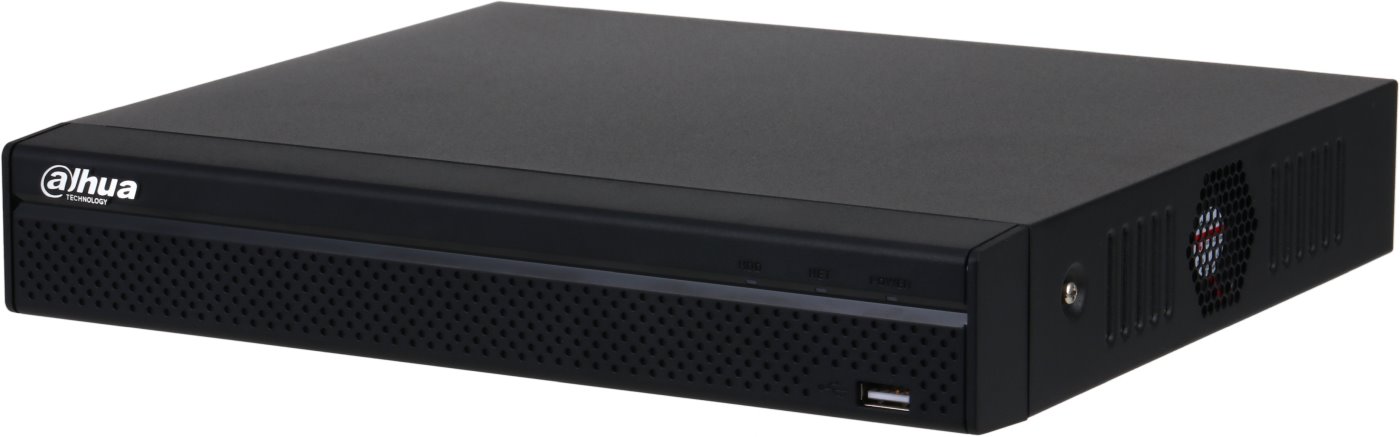

Dahua NVR Lite N420104HS-P-4KS4, 4 channels, 1x HDD, 4x PoE

The network video recorder (NVR) from the Lite series by Dahua is designed for recording up to 4 IP cameras in a combination of various resolutions up to 12 Mpx with data storage on 1x SATA HDD up to 20 TB. The recorder features 5x 10/100 Mbps LAN (4x 802.3af/at PoE), PoE budget of 36W, audio 1/1, 2x USB 2.0, 1x HDMI (4K), 1x VGA, and a DC power connector. The maximum power consumption of the recorder without HDD is 10 W.

Key Features

• Support for 4 channels for recording
• Video analytic functions from cameras: face detection and recognition (4 channels), perimeter protection (4 channels), SMD+ (4 channels), people counting, stereo analysis, heat map
• NVR video analytic functions: SMD+ (4 channels)
• Maximum input/output data rate 80 Mbps / 60 Mbps
• Recording resolution up to 12 Mpx
• Decoding capacity of 8 channels (1080p @ 30 fps) or 4 channels (4MP @ 30 fps)
• 1x SATA HDD with a capacity of up to 20 TB
• HDMI and VGA video output - HDMI output up to 4K
• 5x 10/100 Mbps LAN (4x 802.3af/at PoE), PoE budget of 36W
• Audio 1/1

Software and Applications

A free software called SmartPSS Lite is available for the device, which is used for managing IP devices such as NVRs and IP cameras. It allows for easy device searching, monitoring live images from channels, recording selected channels according to specified criteria, and playback of recordings. Additionally, there is an application called DSS Express that offers more features, is free for up to 10 connected clients, and is built on a client-server architecture. The more advanced DSS Pro is licensed and offers many more analytical functions. For mobile access, there is the DMSS application, which can be downloaded from official app stores (Google Play/Apple App Store).

Package Contents

• Device
• Patch cable
• SATA cable (data and power) + screws
• Power adapter 53V / 1.22A
• Mouse
