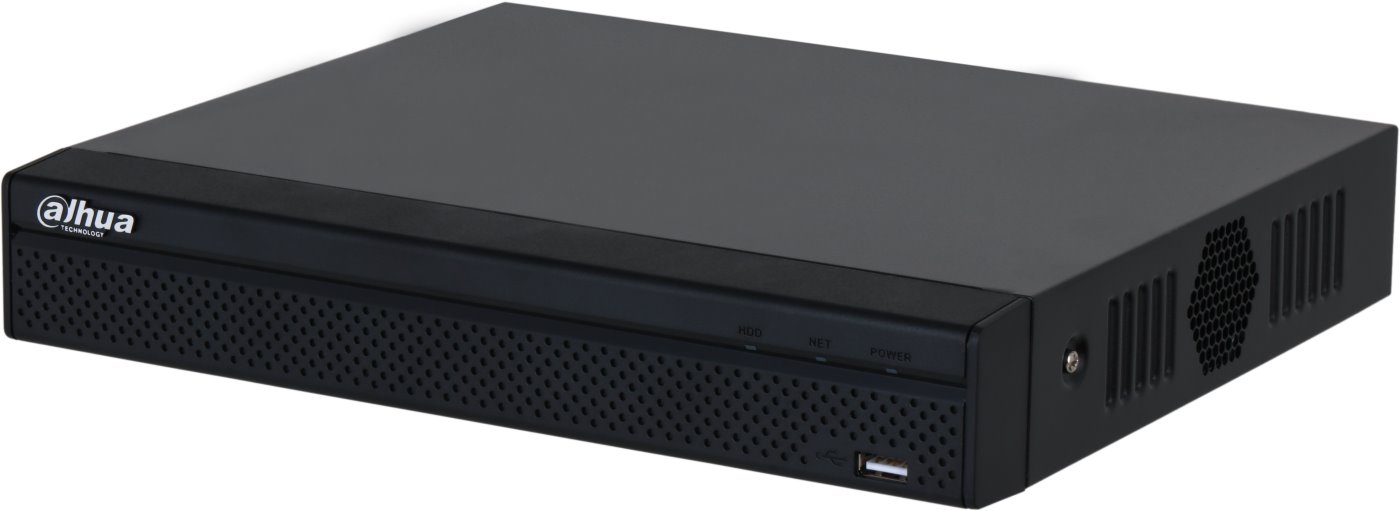

Dahua NVR Lite NVR2104HS-P-4KS3, 4 channels, 1x HDD, 4x PoE

The network video recorder (NVR) from the Lite series by the manufacturer Dahua serves for recording up to 4 IP cameras in combination with various resolutions up to 12 Mpx with data storage on 1x SATA HDD up to 20 TB per disk. The recorder features 5x 10/100 Mbps LAN (4x 802.3af/at PoE), PoE budget of 36W, audio 1/1, 2x USB 2.0, 1x HDMI (4K), 1x VGA, and a DC power connector. The maximum power consumption of the recorder without HDD is 10 W.

Key Features

• Support for 4 channels for recording
• Video analytic functions from cameras: perimeter protection (4 channels), SMD+ (4 channels)
• Video analytic functions NVR: SMD+ (4 channels) - motion detection, target categorization, and filtering false alarms caused by foliage, rain, brightness changes, etc.
• Maximum input/output data rate 80 Mbps / 60 Mbps
• Recording resolution up to 12 Mpx
• Decoding capacity 6 channels (1080p @ 30 fps)
• 1x SATA HDD with capacity up to 20 TB
• HDMI and VGA video output - HDMI output up to 4K
• 5x 10/100 Mbps LAN (4x 802.3af/at PoE), PoE budget 36W
• Audio 1/1

Software and Applications

The device comes with the free software SmartPSS Lite, which is used for managing IP devices, such as NVRs and IP cameras. It allows easy device discovery, live viewing of channel feeds, recording selected channels according to specified criteria, and playback of recordings. Additionally, the DSS Express application is available, which offers more features, is free for up to 10 connected clients, and is built on a client-server architecture. The more advanced DSS Pro is already licensed and offers many more analytical functions. For mobile access, the DMSS application is available for download from official app stores (Play Store/Apple App Store).

Package Contents

• Device
• Patch cable
• SATA cable (data and power) + screws
• Power adapter 53V / 1.22A
• Mouse
