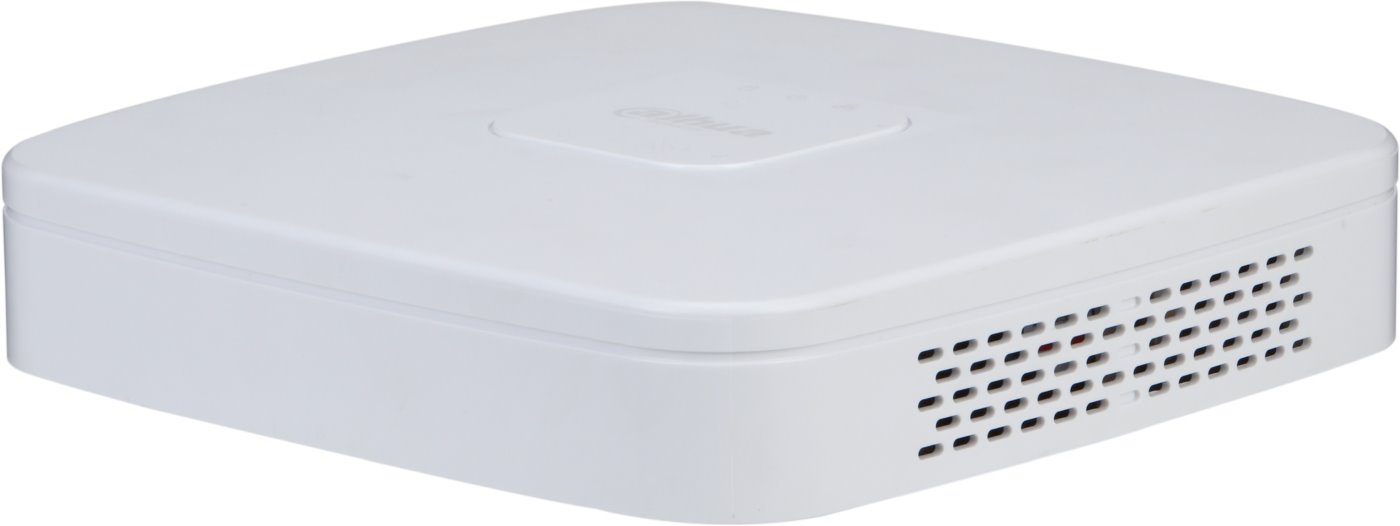

Dahua NVR Lite NVR2108-4KS3, 8 channels, 1x HDD

The network video recorder (NVR) from the Lite series by Dahua manufacturer serves for recording up to 8 IP cameras in combination with various resolutions up to 12 Mpx with data storage on 1x SATA HDD up to 20 TB. The recorder features 1x 10/100 Mbps LAN, audio input/output, 2x USB 2.0, 1x HDMI (4K), 1x VGA, and a DC power connector. The maximum power consumption of the recorder without HDD is 10 W.

Key features

• Support for 8 channels for recording
• Video analytic functions from cameras: perimeter protection (4 channels), SMD+ (4 channels)
• Video analytic functions of NVR: SMD+ (4 channels) - motion detection, target categorization, and filtering false alarms caused by foliage, rain, light changes, etc.
• Maximum input/output data rate 80 Mbps / 60 Mbps
• Recording resolution up to 12 Mpx
• Decoding capacity 6 channels (1080p @ 30 fps)
• 1x SATA HDD with a capacity of up to 20 TB
• HDMI and VGA video output - HDMI output up to 4K
• 1x Ethernet 10/100 Mbps
• Audio 1/1

Software and applications

The device comes with free software SmartPSS Lite, which is used for managing IP devices such as NVRs and IP cameras. It allows for easy device discovery, live viewing of channel images, recording selected channels according to specified criteria, and playback of recordings. Additionally, the DSS Express application is available, which offers more features, is free for up to 10 connected clients, and is built on client-server architecture. The more advanced DSS Pro is licensed and offers many more analytical functions. For mobile access, the DMSS application is available for download from official app stores (Google Play/Apple App Store).

Package contents

• Device
• Patch cable
• SATA cable (data and power) + screws
• Power adapter 12V / 1.5A
• Mouse
