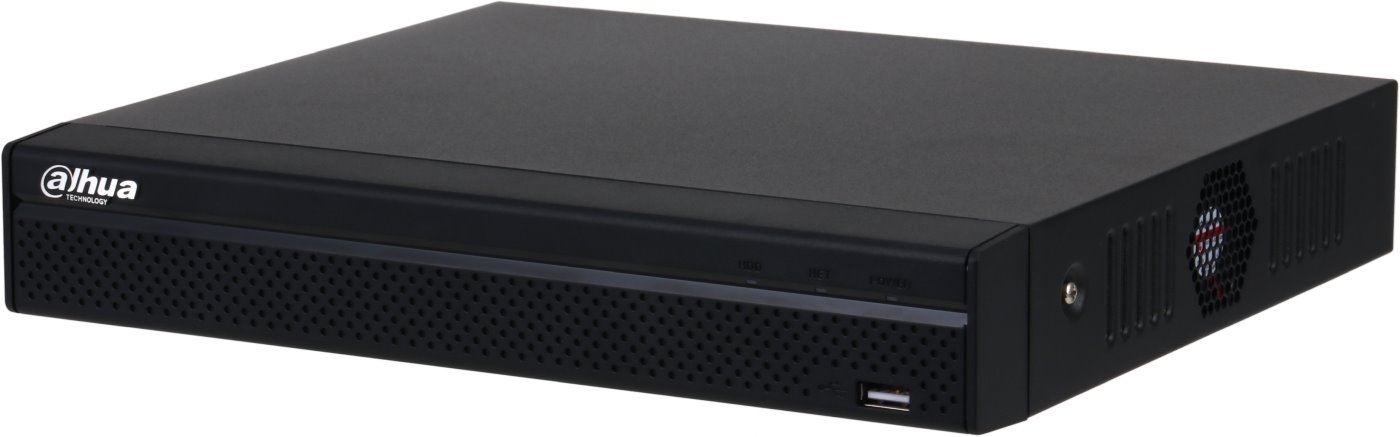

Dahua NVR Lite NVR4108HS-8P-4KS3, 8 channels, 1x HDD, 8x PoE

The network video recorder (NVR) from the Lite series by the manufacturer Dahua is designed for recording up to 8 IP cameras in a combination of various resolutions up to 12 Mpx, with data storage on 1x SATA HDD up to 20 TB per disk. The recorder features 1x 10/100/1000 Mbps + 8x 10/100 Mbps LAN (8x 802.3af/at PoE), PoE budget of 72W, audio 1/1, 2x USB 2.0, 1x HDMI (4K), 1x VGA, and a DC power connector. The maximum power consumption of the recorder without HDD is 10 W.

Key Features

• Support for 8 channels for recording
• Video analytics functions from cameras: face detection and recognition (6 channels), perimeter protection (6 channels), SMD+ (6 channels), people counting, stereo analysis, heat map
• NVR video analytics functions: SMD+ (4 channels)
• Maximum input/output data rate 160 Mbps / 80 Mbps / with AI enabled (80 Mbps / 60 Mbps)
• Recording resolution up to 12 Mpx
• Decoding capacity 8 channels (1080p @ 30 fps)
• 1x SATA HDD with a capacity of up to 20 TB
• HDMI and VGA video output - HDMI output up to 4K
• 1x 10/100/1000 Mbps + 8x 10/100 Mbps LAN (8x 802.3af/at PoE), PoE budget 72 W
• Audio 1/1

Software and Applications

A free software SmartPSS Lite is available for the device, which is used for managing IP devices, such as NVRs and IP cameras. It allows easy device search, live monitoring of channel images, recording selected channels according to specified criteria, and playback of recordings. Additionally, there is an application DSS Express, which offers more features, is free for up to 10 connected clients, and is built on a client-server architecture. The more advanced DSS Pro is already licensed and offers many more analytical functions. For mobile access, the DMSS application is available and can be downloaded from official app stores (Google Play/Apple App Store).

Package Contents

• Device
• Patch cable
• SATA cable (data and power) + screws
• Power adapter 53 V / 1.81 A
• Mouse
