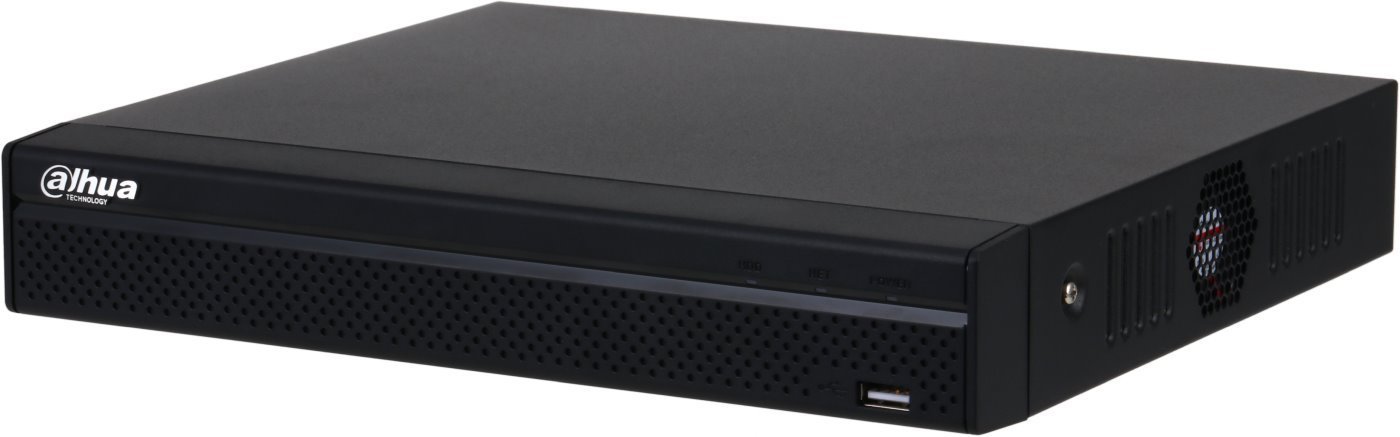

Dahua NVR Lite NVR4116HS-4KS3, 16 channels, 1x HDD

The network video recorder (NVR) from the Lite series by Dahua is designed for recording up to 16 IP cameras in a combination of various resolutions up to 12 Mpx, with data storage on 1x SATA HDD up to 20 TB per disk. The recorder features 1x 10/100/1000 Mbps LAN, audio input/output, 2x USB 2.0, 1x HDMI (4K), 1x VGA, and a power DC connector. The maximum power consumption of the recorder without HDD is 10 W.

Key Features

• Support for 16 channels for recording
• Video analytics functions from cameras: face detection and recognition (6 channels), perimeter protection (6 channels), SMD+ (6 channels), people counting, stereo analysis, heat map
• NVR video analytics functions: SMD+ (4 channels)
• Maximum input/output data rate 80 Mbps / 60 Mbps
• Recording resolution up to 12 Mpx
• Decoding capacity 8 channels (1080p @ 30 fps) or 2 channels (8MP @ 30 fps)
• 1x SATA HDD capacity up to 20 TB
• HDMI and VGA video output - HDMI output up to 4K
• 1x Ethernet 10/100/1000 Mbps
• Audio 1/1

Software and Applications

Free software SmartPSS Lite is available for the device, which is used to manage IP devices, such as NVRs and IP cameras. It allows easy device discovery, live viewing of channel feed, recording of selected channels based on specified criteria, and playback of recordings. Additionally, the DSS Express application is available, offering more features, is free for up to 10 connected clients, and is built on a client-server architecture. The more advanced DSS Pro is already licensed and offers many more analytical functions. For mobile access, the DMSS application is available for download from official app stores (Play Store/Apple App Store).

Package Contents

• Device
• Patch cable
• SATA cable (data and power) + screws
• Power adapter 12V / 2A
• Mouse
