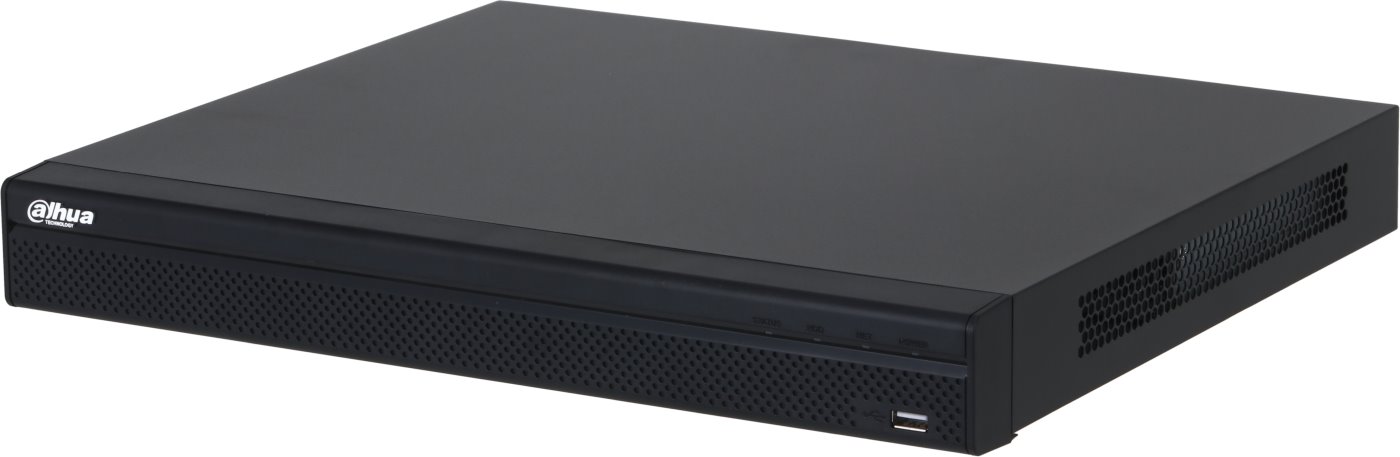

Dahua NVR Lite NVR4208-8P-4KS3, 8 channels, 2x HDD, 8x PoE

The network video recorder (NVR) from the Lite series by the manufacturer Dahua serves for recording up to 8 IP cameras in combinations of various resolutions up to 12 Mpx with data storage on 2x SATA HDDs up to 20 TB per drive. The recorder features 1x 10/100/1000 Mbps + 8x 10/100 Mbps LAN (8x 802.3af/at PoE), PoE budget of 130W, audio 1/1, alarm 4/2, 2x USB 2.0, 1x HDMI (4K), 1x VGA, and an AC power connector. The maximum power consumption of the recorder without HDD is 10 W.

Key Features

• Support for 4 channels for recording
• Video analytic functions from cameras: face detection and recognition (6 channels), perimeter protection (6 channels), SMD+ (6 channels), people counting, stereo analysis, thermal map
• Video analytic functions of the NVR: SMD+ (4 channels)
• Maximum input/output data rate 160 Mbps / 60 Mbps
• Recording resolution up to 12 Mpx
• Decoding capacity 8 channels (1080p @ 30 fps)
• 2x SATA HDDs with a capacity of up to 20 TB
• HDMI and VGA video output - HDMI output up to 4K
• 1x 10/100/1000 Mbps + 8x 10/100 Mbps LAN (8x 802.3af/at PoE), PoE budget 130W
• Audio 1/1 + Alarm 4/2

Software and Applications

A free software SmartPSS Lite is available for the device, which is used for managing IP devices such as NVRs and IP cameras. It allows easy device search, live channel monitoring, recording of selected channels according to specified criteria, and playback of recordings. Additionally, there is an application DSS Express, which offers more features, is free for up to 10 connected clients, and is built on a client-server architecture. The more advanced DSS Pro is already licensed and offers much more analytical functionality. For mobile access, the DMSS application is available and can be downloaded from official app stores (Google Play/Apple App Store).

Package Contents

• Device
• Patch cable
• (2) SATA cables (data and power) + screws
• Power cable
• Mouse
