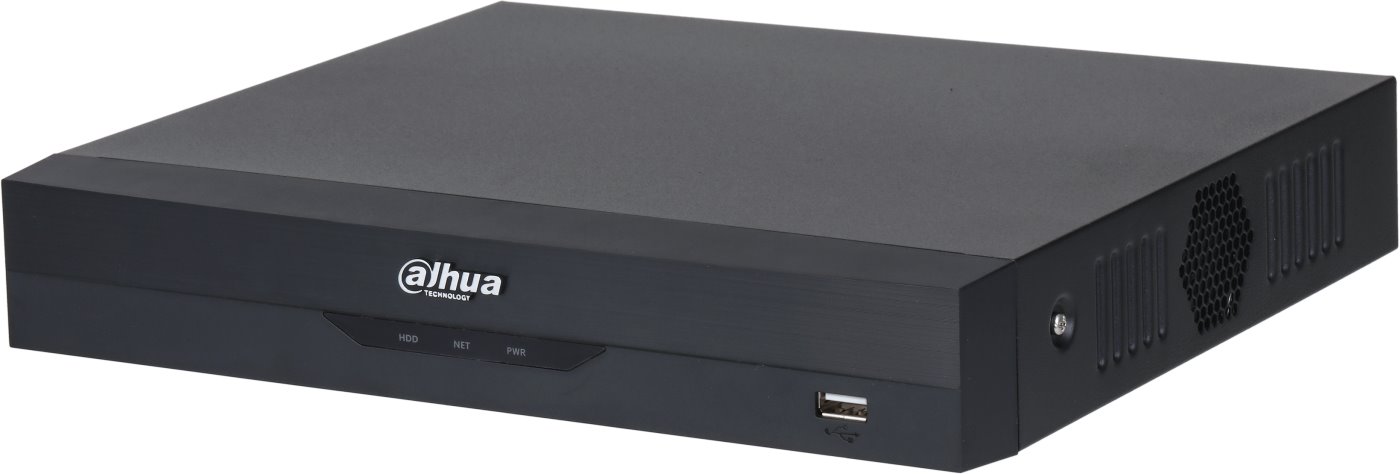

Dahua NVR WizSense NVR4104HS-EI, 4 channels, 1x HDD

Network video recorder (NVR) from the WizSense series by manufacturer Dahua serves for recording up to 4 IP cameras in combination of various resolutions up to 16 Mpx with data storage on 1x SATA HDD up to 16 TB per disk. The recorder features 1x 10/100 Mbps LAN, audio input/output, 2x USB 2.0, 1x HDMI (4K), 1x VGA, and a DC power connector. The maximum power consumption of the recorder without HDD is 10 W.

Key Features

• Support for 4 channels for recording
• Video analytic functions from cameras: face detection and recognition (4 channels), perimeter protection (4 channels), SMD+ (4 channels), person counting, stereo analysis, thermal mapping
• Video analytic functions NVR: face detection and recognition (1 channel), perimeter protection (2 channels), SMD+ (4 channels)
• Maximum input/output data rate 80 Mbps / 80 Mbps
• Recording resolution up to 16 Mpx
• Decoding capacity 16 channels (1080p @ 30 fps)
• 1x SATA HDD with a capacity of up to 16 TB
• HDMI and VGA video output - HDMI output up to 4K
• 1x Ethernet 10/100 Mbps
• Audio 1/1

Software and Applications

The device comes with free software SmartPSS Lite, which is used for managing IP devices such as NVRs and IP cameras. It allows easy device discovery, monitoring of live images from channels, recording selected channels based on specified criteria, and playback of recordings. Additionally, the application DSS Express is available, offering more features, is free for up to 10 connected clients, and is based on client-server architecture. The more advanced DSS Pro is licensed and offers many more analytic functions. For mobile access, the DMSS application is available for download from official app stores (Google Play/Apple App Store).

Package Contents

• Device
• Patch cable
• SATA cable (data and power) + screws
• Power adapter 12V / 2A
• Mouse
