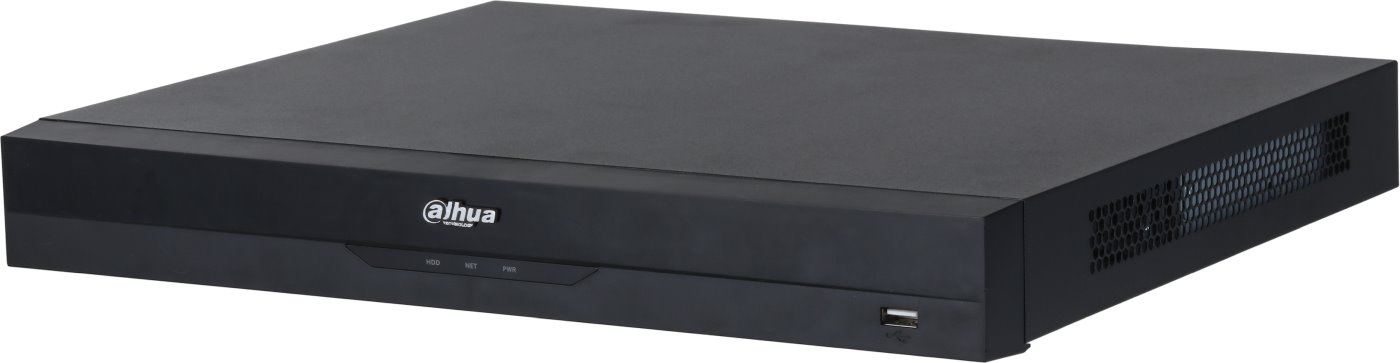

Dahua NVR WizSense NVR4208-8P-EI, 8 channels, 2x HDD, 8x PoE

The network video recorder (NVR) from the WizSense series by the manufacturer Dahua serves for recording up to 8 IP cameras in combinations of different resolutions up to 16 Mpx with data storage on 2x SATA HDD up to 16 TB per disk. The recorder has 1x 10/100/1000 Mbps + 8x 10/100 Mbps LAN (8x 802.3af/at PoE), PoE budget of 130W, audio 1/1, alarm 4/2, 2x USB 2.0, 1x HDMI (4K), 1x VGA, and an AC power connector. The maximum consumption of the recorder without HDD is 10 W.

Key Features

• Support for 8 channels for recording
• Video analytical functions from cameras: face detection and recognition (8 channels), perimeter protection (8 channels), SMD+ (8 channels), people counting, stereo analysis, heat map
• Video analytical functions of NVR: face detection and recognition (1 channel), perimeter protection (2 channels), SMD+ (4 channels)
• Maximum input/output data rate 256 Mbps / 256 Mbps
• Recording resolution up to 16 Mpx
• Decoding capacity 16 channels (1080p @ 30 fps)
• 2x SATA HDD with a capacity of up to 16 TB
• HDMI and VGA video output - HDMI output up to 4K
• 1x 10/100/1000 Mbps + 8x 10/100 Mbps LAN (8x 802.3af/at PoE), PoE budget 130W
• Audio 1/1 + Alarm 4/2

Software and Applications

The device comes with free software SmartPSS Lite, which is used for managing IP devices such as NVRs and IP cameras. It allows easy device discovery, live viewing of channel images, recording selected channels according to specified criteria, and playback of recordings. Additionally, the DSS Express application is available, offering more features, free for up to 10 connected clients, and based on a client-server architecture. The more advanced DSS Pro is already licensed and offers many more analytical features. For mobile access, there is the DMSS application, which can be downloaded from the official app stores (Google Play/Apple App Store).

Package Contents

• Device
• Patch cable
• (2) SATA cable (data and power) + screws
• Power cable
• Mouse
