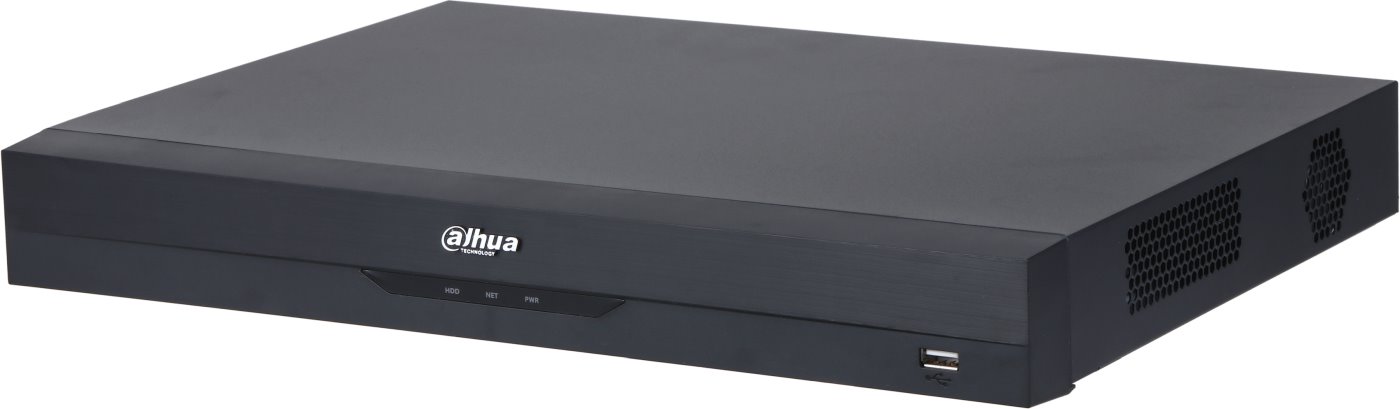

Dahua NVR WizSense NVR4232-EI, 32 channels, 2x HDD

The network video recorder (NVR) from the WizSense series by manufacturer Dahua serves for recording up to 32 IP cameras in a combination of various resolutions up to 16 Mpx with data storage on 2x SATA HDD up to 16 TB per disk. The recorder features 1x 10/100/1000 Mbps LAN, audio input/output, alarm 4/2, 2x USB 2.0, 1x HDMI (4K), 1x VGA, and a DC power connector. The maximum power consumption of the recorder without HDD is 10 W.

Key Features

• Support for 32 channels for recording
• Video analytical functions from cameras: face detection and recognition (8 channels), perimeter protection (8 channels), SMD+ (8 channels), people counting, stereo analysis, heat map
• Video analytical functions of NVR: face detection and recognition (1 channel), perimeter protection (2 channels), SMD+ (4 channels)
• Maximum input/output data rate 256 Mbps / 256 Mbps
• Recording resolution up to 16 Mpx
• Decoding capacity 16 channels (1080p @ 30 fps)
• 2x SATA HDD with a capacity of up to 16 TB
• HDMI and VGA video output - HDMI output up to 4K
• 1x Ethernet 10/100/1000 Mbps
• Audio 1/1 + Alarm 4/2

Software and Applications

A free software SmartPSS Lite is available for the device, which serves for managing IP devices such as NVRs and IP cameras. It allows easy device search, live monitoring of channel images, recording selected channels according to specified criteria, and playback of recordings. Additionally, an application DSS Express is available, offering more features, free for up to 10 connected clients, and built on client-server architecture. The more advanced DSS Pro is already licensed and offers much more analytical functions. For mobile access, the DMSS application is available for download from official app stores (Google Play/Apple App Store).

Package Contents

• Device
• Patch cable
• (2) SATA cables (data and power) + screws
• Power adapter 12V / 4A
• Mouse
