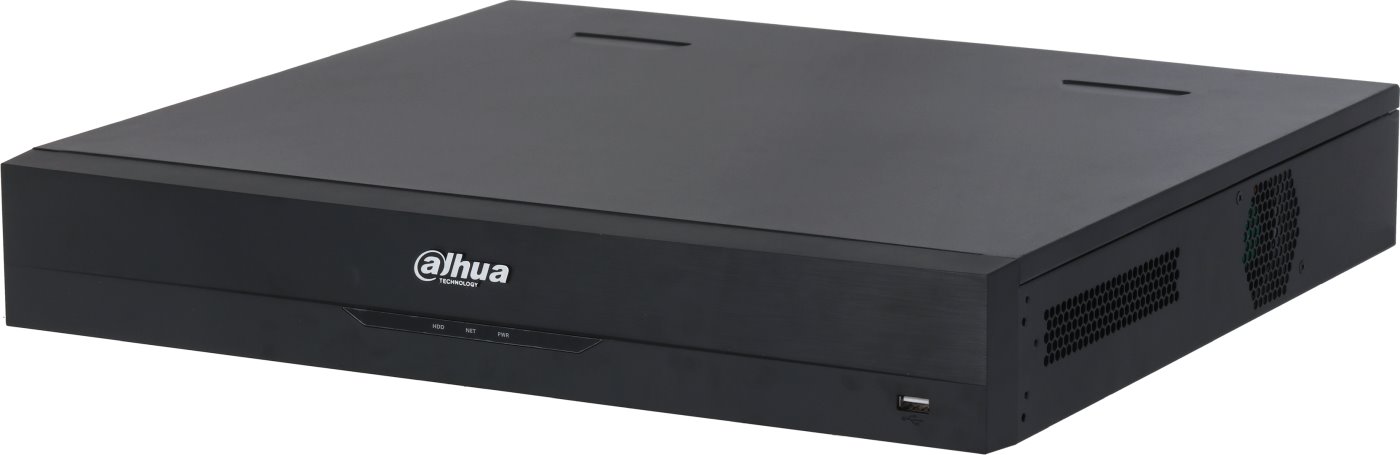

Dahua NVR WizSense NVR4416-16P-EI, 16 channels, 4x HDD, 16x PoE

The Network Video Recorder (NVR) from the WizSense series by the manufacturer Dahua is designed for recording up to 16 IP cameras in a combination of various resolutions up to 16 Mpx with data storage on 4x SATA HDD up to 16 TB per disk. The recorder features 1x 10/100/1000 Mbps + 16x 10/100 Mbps LAN (16x 802.3af/at PoE), PoE budget of 150W, audio 1/1, alarm 16/4, 1x USB 2.0, 1x USB 3.0, 1x RS-232, 1x RS-485, 1x HDMI (4K), 1x VGA, and an AC power connector. The maximum consumption of the recorder without HDD is 10 W.

Key Features

• Support for 16 channels for recording
• Video analytic functions from cameras: face detection and recognition (8 channels), perimeter protection (8 channels), SMD+ (8 channels), license plate reading (4 channels), people counting, stereo analysis, thermal mapping
• NVR video analytic functions: face detection and recognition (1 channel), perimeter protection (2 channels), SMD+ (4 channels)
• Maximum input/output data throughput 256 Mbps / 256 Mbps
• Recording resolution up to 16 Mpx
• Decoding capacity 16 channels (1080p @ 30 fps)
• 4x SATA HDD with a capacity of up to 16 TB
• HDMI and VGA video output - HDMI output up to 4K
• 1x 10/100/1000 Mbps + 16x 10/100 Mbps LAN (16x 802.3af/at PoE), PoE budget 130W
• Audio 1/1 + Alarm 16/4

Software and Applications

A free software SmartPSS Lite is available for the device, which is used to manage IP devices such as NVRs and IP cameras. It allows for easy device discovery, live viewing of channel feeds, recording selected channels based on specified criteria, and playback of recordings. Additionally, the DSS Express application is available, which offers more features, is free for up to 10 connected clients, and is based on a client-server architecture. The more advanced DSS Pro is licensed and offers many more analytical features. For mobile access, the DMSS app is available for download from official app stores (Google Play/App Store).

Package Contents

• Device
• Patch cable
• (4) SATA cable (data and power) + screws
• Alarm terminals
• Rack mounts
• Power cable
• Mouse
