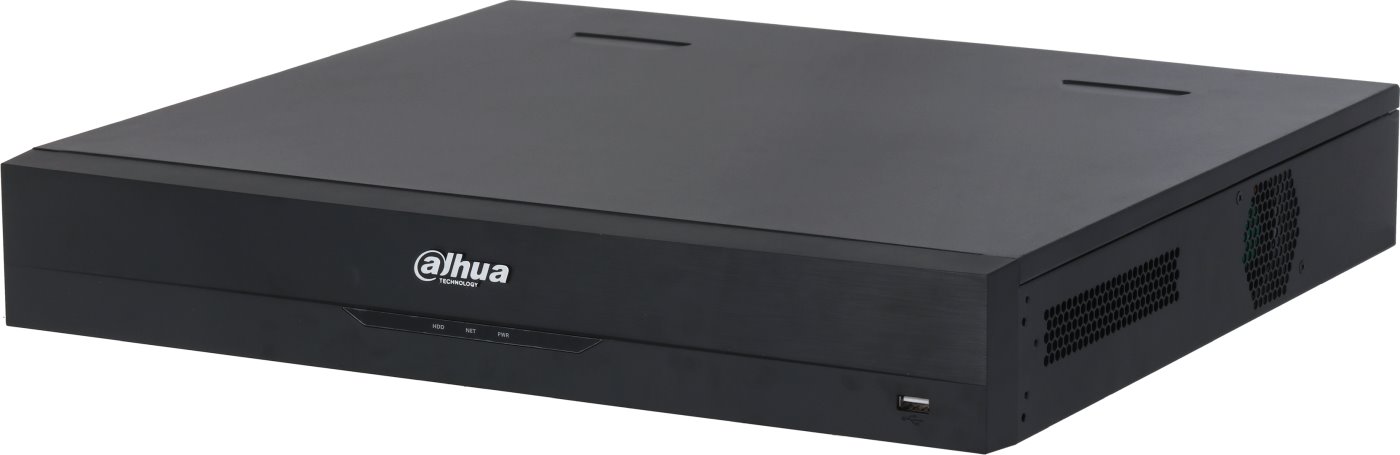

Dahua NVR WizSense NVR4416-EI, 16 channels, 4x HDD

The network video recorder (NVR) from the WizSense series by Dahua manufacturer serves for recording up to 16 IP cameras in a combination of various resolutions up to 16 Mpx with data storage on 4x SATA HDD up to 16 TB per disk. The recorder features 2x 10/100/1000 Mbps LAN, audio input/output, alarm 16/4, 1x USB 2.0, 1x USB 3.0, 1x HDMI (4K), 1x VGA, 1x RS-232, 1x RS-485, and a power 230V AC connector. The maximum power consumption of the recorder without HDD is 10 W.

Key Features

• Support for 16 channels for recording
• Video analytics functions from cameras: face detection and recognition (8 channels), perimeter protection (8 channels), SMD+ (8 channels), license plate reading (4 channels), people counting, stereo analysis, thermal mapping
• Video analytics functions of NVR: face detection and recognition (1 channel), perimeter protection (2 channels), SMD+ (4 channels)
• Maximum input/output data rate 256 Mbps / 256 Mbps
• Recording resolution up to 16 Mpx
• Decoding capacity 16 channels (1080p @ 30 fps)
• 4x SATA HDD with a capacity of up to 16 TB
• HDMI and VGA video output - HDMI output up to 4K
• 2x Ethernet 10/100/1000 Mbps
• Audio 1/1 + Alarm 16/4

Software and Applications

A free software SmartPSS Lite is available for the device, which serves for managing IP devices such as NVR and IP cameras. It allows easy device discovery, monitoring live views of channels, recording selected channels based on specified criteria, and playback of recordings. Additionally, there is also an application DSS Express, which offers more features, is free for up to 10 connected clients, and is based on a client-server architecture. The more advanced DSS Pro is already licensed and offers much more analytical functions. For mobile access, the DMSS app is available, which can be downloaded from official app stores (Google Play/Apple App Store).

Package Contents

• Device
• Patch cable
• (4) SATA cable (data and power) + screws
• Rack mounts
• Power cable
• Mouse
