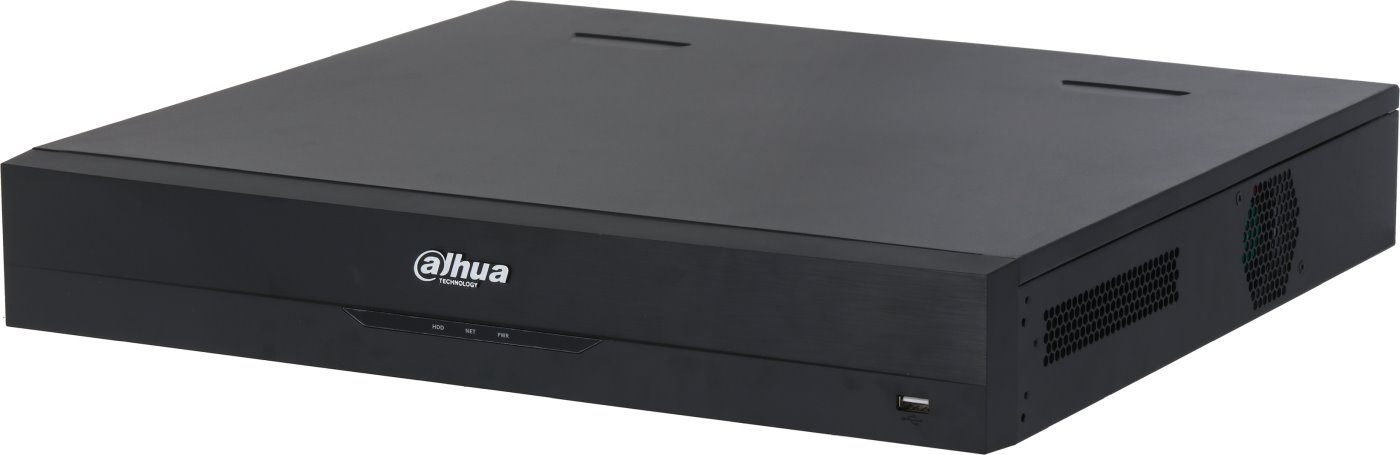

Dahua NVR WizSense NVR5464-EI, 64 channels, 4x HDD

The network video recorder (NVR) from the WizSense series by manufacturer Dahua is designed for recording up to 64 IP cameras in a combination of various resolutions up to 32 Mpx with data storage on 4x SATA HDD up to 20 TB per disk. The recorder features 2x 10/100/1000 Mbps LAN, audio input/output, alarm 16/6, 1x USB 2.0, 2x USB 3.0, 2x HDMI (4K), 2x VGA, 1x RS-232, 1x RS-485, and a 230V AC power connector. The maximum power consumption of the recorder without HDD is 13 W.

Key Features

• Support for 64 channels for recording
• Video analytic functions from cameras: face detection and recognition (16 channels), perimeter protection (16 channels), SMD+ (16 channels), license plate reading (8 channels), people counting, traffic density, heat map
• Video analytic functions of NVR: face detection and recognition (2 channels), perimeter protection (4 channels), SMD+ (8 channels)
• Maximum input/output data rate 384 Mbps / 384 Mbps
• Recording resolution up to 32 Mpx
• Decoding capacity 32 channels (1080p @ 30 fps)
• 4x SATA HDD with a capacity of up to 20 TB
• 2x HDMI and VGA video output - HDMI output up to 4K
• 2x Ethernet 10/100/1000 Mbps
• Audio 1/2 + Alarm 16/6

Software and Applications

The device comes with free software SmartPSS Lite, which is used for managing IP devices such as NVRs and IP cameras. It allows for easy device searching, live viewing of channel images, recording selected channels based on specified criteria, and playback of recordings. Additionally, there is the DSS Express application, which offers more features, is free for up to 10 connected clients, and is based on a client-server architecture. The more advanced DSS Pro is licensed and offers many more analytic features. For mobile access, the DMSS application is available for download from official app stores (Google Play/Apple App Store).

Package Contents

• Device
• Patch cable
• (4) SATA cable (data and power) + screws
• Rack mounts
• Power cable
• Mouse
