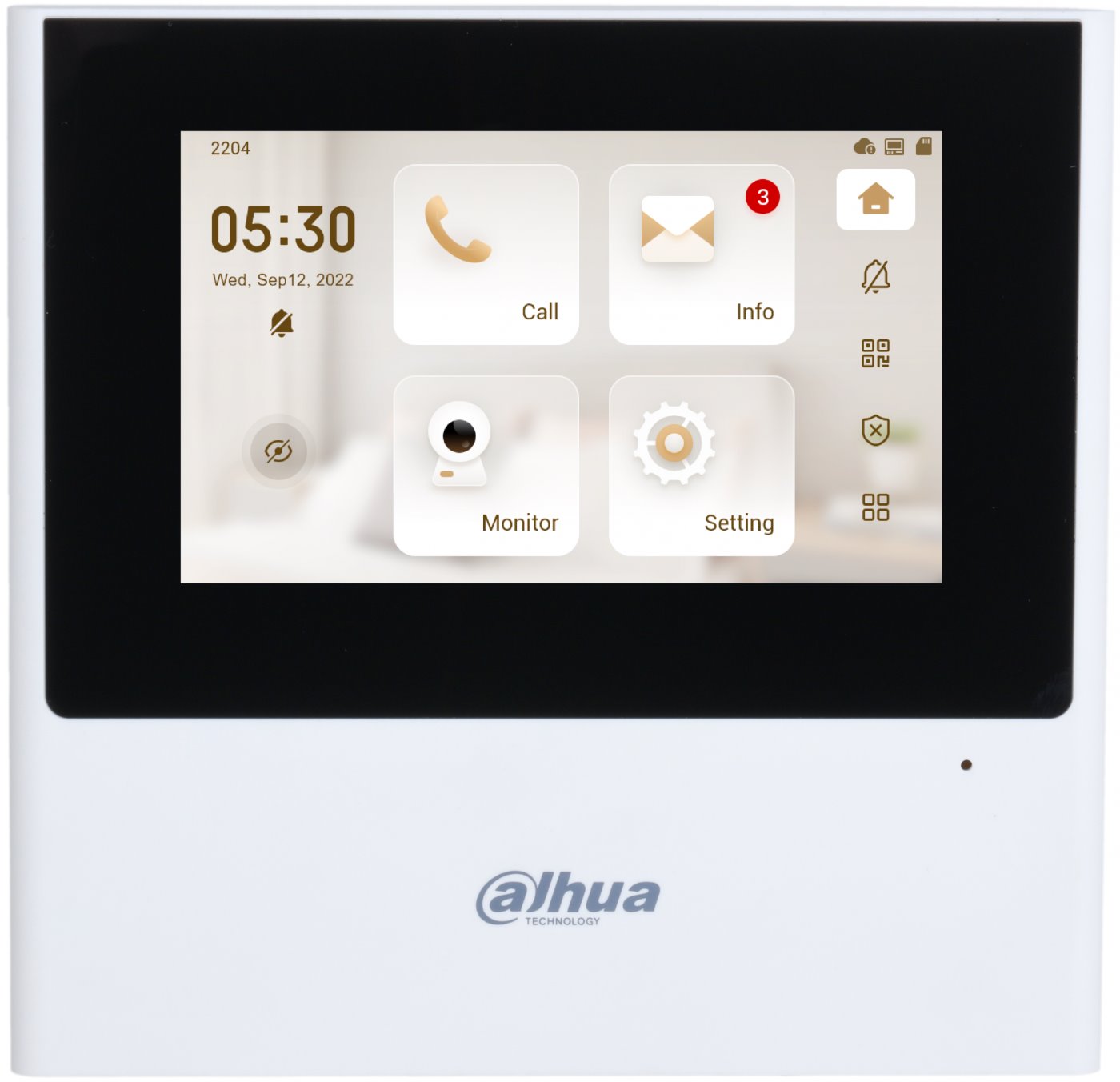

Dahua VTH2611L-WP, Home monitor with 4.3" touchscreen, Wi-Fi and LAN

The modern mini monitor offers full digital communication with the door station and the possibility of real-time internal intercom. The built-in microphone and speaker enable two-way communication with echo reduction and digital noise cancellation, while the DND feature and the ability to open doors remotely provide maximum comfort and flexibility for everyday use. The monitor also supports call forwarding and remote access to the images from connected IP cameras, ensuring comprehensive surveillance and safety.

Intuitive touch display and modern design

The 4.3" display with a resolution of 480 × 272 px provides a clear and detailed image that is easy to operate thanks to the capacitive touchscreen and intuitive user interface. The Czech menu and SIP protocol support allow for quick and convenient system setup. The monitor is suitable for simple IP intercom systems (Villa) and integration into existing security solutions, including elevator control or IPC surveillance systems with Dahua IP cameras.

Flexible connectivity and safe power supply

The device supports both wired connection via Ethernet 10/100 Mbps and wireless communication using Wi-Fi 802.11b/g/n. Power can be supplied via standard DC 12 V or conveniently through PoE/PoE+ (802.3af/at), simplifying installation without the need for additional power adapters. Four alarm inputs and one relay output allow easy integration with alarm systems, and low power consumption ensures efficient operation without compromises.

Key features

• 4.3" capacitive touch TFT display with a resolution of 480 × 272 px
• Fully digital two-way communication with microphone and speaker
• Support for Wi-Fi (802.11b/g/n) and Ethernet 10/100 Mbps
• Power supply DC 12 V or PoE/PoE+ (802.3af/at)
• 4 alarm inputs and 1 relay output for integration into alarm systems
• Remote door control, internal intercom, DND mode
• Support for SIP protocol and Dahua IPC surveillance systems
• Echo cancellation and digital noise reduction for clear communication
