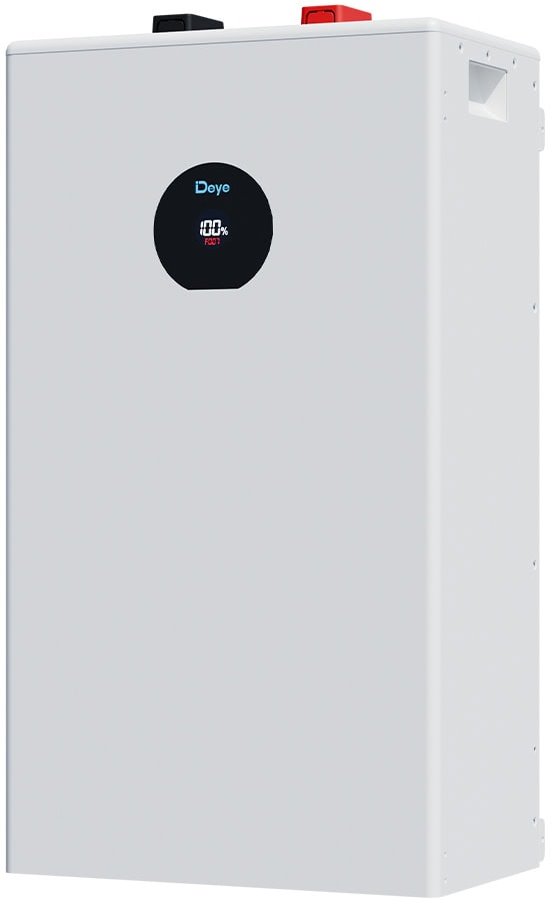

DEYE battery SE-F16, 16 kWh, LV

The solution designed for efficient home and smaller commercial energy systems offers high utility value thanks to an energy capacity of 16 kWh and a nominal capacity of 314 Ah. The optimized PACK design increases energy density and minimizes losses in conduction, ensuring that every stored kilowatt-hour is utilized to the maximum. The battery is designed for long-term operation and can handle over 6000 charge cycles, making it a stable and economically advantageous investment in energy independence.

Safety and performance without compromise

The maximum protection is ensured by a advanced battery management system (BMS) with active protection, which ensures safe and stable operation even under high loads. Continuous discharge current along with support for charging at 1C and discharging at 1.2C allows for a dynamic response to current consumption. The use of GaN MOSFETs reduces energy losses by up to 50% while increasing resistance to high temperatures, contributing to efficient operation even in demanding conditions.

Flexibility, scalability, and easy management

The system is prepared to grow along with your needs thanks to the option of parallel connection of up to 32 units. Variable installations on walls, floors, or in a stacking arrangement allow for easy incorporation into any space. Clear monitoring via Bluetooth, CAN2.0, or RS485, along with local and remote oversight, simplifies the management and maintenance of the entire energy storage system. Reliable operation in the range of 0 °C to 35 °C without the need for active cooling underscores the versatility of this solution.

Key features

• Energy capacity of 16 kWh (314 Ah)
• Lifetime of over 6000 charge cycles
• Advanced BMS system with active protection for maximum safety
• Parallel connection of up to 32 units and flexible installation options
• Max. charging and discharging current of 160 A, IP21 protection rating
• Versatile installation, LCD display, 5-year warranty
