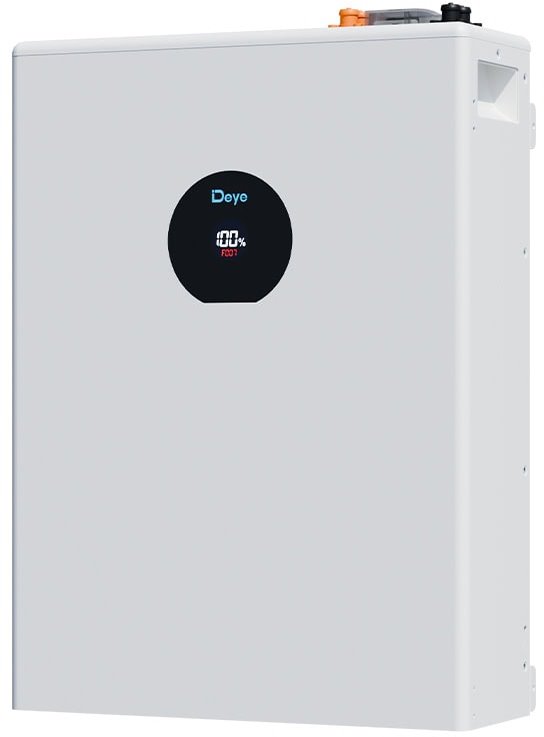

DEYE battery SE-F5, 5.12 kWh, LV

The solution designed for efficient home and smaller commercial energy systems offers high utility value thanks to an energy capacity of 5.12 kWh and a nominal capacity of 100 Ah. The optimized PACK design increases energy density and minimizes losses in conduction, ensuring that every stored kilowatt-hour is utilized to the fullest. The battery is designed for long-term operation and can handle more than 6000 charging cycles, making it a stable and economically advantageous investment in energy independence.

Safety and performance without compromise

Maximum protection is ensured by a advanced Battery Management System (BMS) with an active fuse, which guarantees safe and stable operation even under high load. The continuous discharge current along with support for charging at 1C and discharging at 1.2C allows for dynamic response to current consumption. The use of GaN MOSFETs reduces energy losses by up to 50% and increases resistance to high temperatures, contributing to efficient operation even in demanding conditions.

Flexibility, scalability, and easy management

The system is ready to grow alongside your needs with the option for parallel connection of up to 32 units. Variable installation options on walls, floors, or in a stacked form allow for easy integration into any space. Clear monitoring via Bluetooth, CAN2.0, or RS485 along with local and remote oversight simplifies the management and maintenance of the entire energy storage system. Reliable operation in the range of 0 °C to 35 °C without the need for active cooling highlights the versatility of this solution.

Key features

• Energy capacity of 5.12 kWh (100 Ah)
• Lifetime of more than 6000 charging cycles
• Advanced BMS system with active fuse for maximum safety
• Parallel connection of up to 32 units and flexible installation options
• Max. charging and discharging current 100 A, protection class IP21
• Versatile installation, LCD display, 5-year warranty
