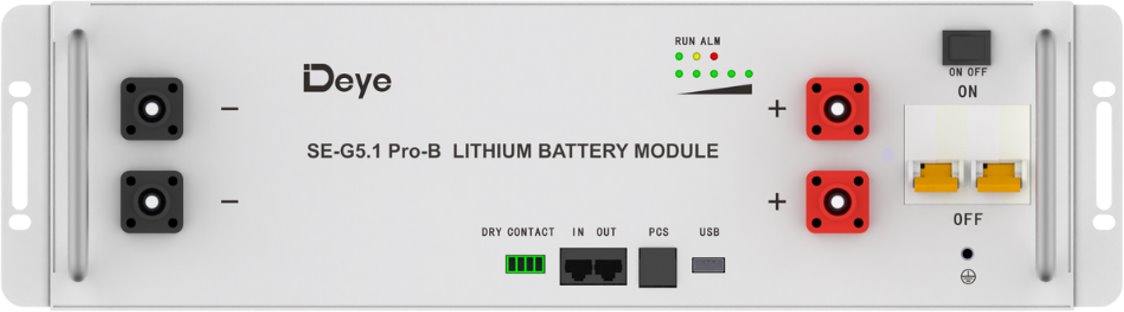

DEYE battery SE-G5.1 Pro-B, 5.12 kWh, LV, rackmount

This series of lithium iron phosphate batteries is one of the new energy storage products developed and manufactured by Deye. It can be used to support reliable power for various types of devices and systems. It is particularly suitable for high performance applications, limited installation space, limited load capacity and large number of life cycles. It has a built-in BMS battery management system that can manage and monitor cell information including voltage, current and temperature. What's more, the BMS can balance the charging and discharging of the cells to extend the life. Multiple batteries can be connected in parallel to expand capacity and power in parallel for greater capacity and longer power to support endurance requirements up to a capacity of 327 kWh (64 units).

Technical information

• Battery cell capacity: 100 Ah
• Rated system voltage: 51.2 V
• Operating voltage (range): 43.2 - 57.6 V
• Maximum number of modules: up to 64 batteries
• Battery capacity: 5.12 kWh
• Usable capacity (90%): 4.61 kWh
• Dimensions: 440 x 133 x 540 mm
• Weight: 45 kg
• Working temperature: Charging 0 - 55 °C / Discharging -20 - 55 °C
• Storage temperature: 0 - 35 °C
• Cycle life: 6000 cycles = 80% capacity (6000@25±2?,0.5C/0.5C,90% DOD, 70%EOL)
• Communication port: CAN2.0, RS485

Package Contents

• Device
• (2) DC Connection Cable (Inverter - Battery)
• (2) DC Connection Cable (Battery - Battery)
• Ground Cable
• Terminal Block
• (2) CAN Cable
• (4) Stacking Leg
