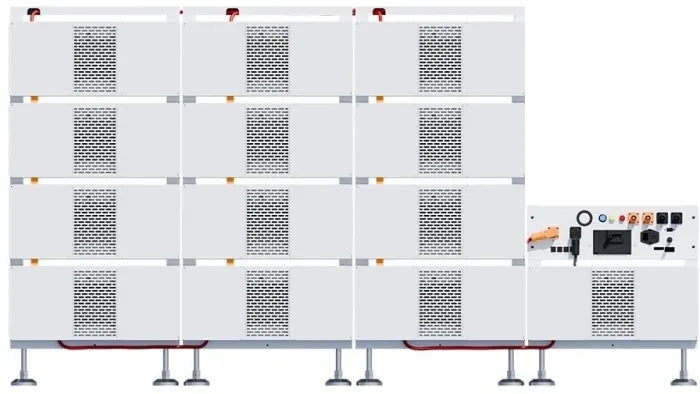

DEYE BOS-B208 Pro-A3 Battery set with BMS, 208.9 kWh, 13 batteries, HV

BOS-B battery set with 13 high-voltage batteries with a total capacity of 208.9 kWh, smart BMS (BOS-B-PDU-2-A) and installation accessories. This is an enhanced solution from series-connected LiFePO4 batteries from the manufacturer DEYE, featuring easy installation, simple maintenance, and high reliability. The entire set offers a protective function system including excessive discharge, overcharge, overcurrent, and excessively high or low temperature.

Rapid and reliable switching ensures a smooth transition between operating modes without interruption, advanced energy storage provides flexibility and stability of supply, efficient integration of photovoltaics maximizes the use of solar energy, and high performance and scalability allow easy adaptation to growing energy demands, especially in industrial installations.

Key Features

• Battery cluster with 13 batteries (16.08 kWh, total 208.9 kWh), up to 16 parallel stacks
• Battery capacity 4082 Ah, Output voltage 665.6 V
• Sufficiently high charging and discharging current - 180 A
• 500 kW switching capacity of the STS module
• Up to 8 MPPT trackers for 200 kWp PV connection
• PCS efficiency up to 98.5% and total system performance up to 2.5 MW
• Long lifespan up to 6000 cycles, warranty 5 + 5 years
• Deye Cloud - platform for energy and device management

Package Contents

• (13) Battery module BOS-B Pro-A3 (16.08 kWh)
• BMS control box for BOS-B Pro-A3 assemblies
• Installation accessories
