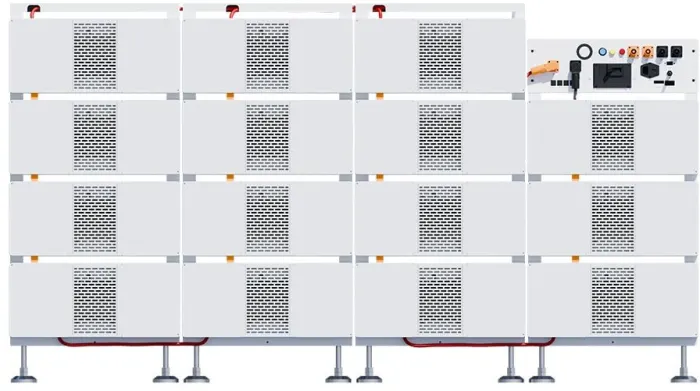

DEYE BOS-B240 Pro-A3 Battery set with BMS, 241.1 kWh, 15 batteries, HV

BOS-B battery set with 15 high-voltage batteries with a total capacity of 241.1 kWh, smart BMS (BOS-B-PDU-2-A) and installation accessories. This is an enhanced solution from the series-connected LiFePO4 batteries from the manufacturer DEYE, with easy installation, simple maintenance, and high reliability. The entire set offers a protective function system including excessive discharge, overcharge, overcurrent, and too high or low temperatures.

Fast and reliable switching ensures a smooth transition between operating modes without interruption, advanced energy storage brings flexibility and stability of supply, efficient integration of photovoltaics maximizes the utilization of solar energy, and high performance and scalability allow easy adaptation to growing energy demands, especially in industrial installations.

Key Features

• Battery cluster with 15 batteries (16.08 kWh, total 241.1 kWh), up to 16 parallel stacks
• Battery capacity 4710 Ah, Output voltage 768 V
• Sufficiently high charging and discharging current - 180 A
• 500 kW switching capacity of the STS module
• Up to 8 MPPT trackers for 200 kWp PV connection
• PCS efficiency up to 98.5% and total system performance up to 2.5 MW
• Long lifespan of up to 6000 cycles, warranty 5 + 5 years
• Deye Cloud - energy and device management platform

Package Contents

• (15) Battery module BOS-B Pro-A3 (16.08 kWh)
• BMS control box for BOS-B Pro-A3 assemblies
• Installation accessories
