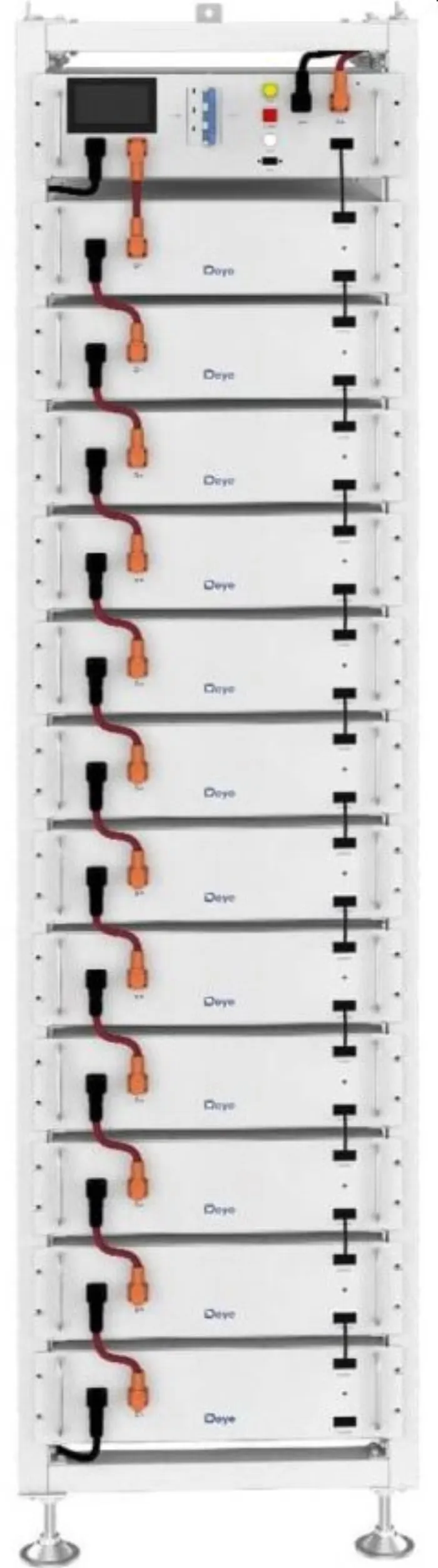

DEYE BOS-G60 Pro battery set, 61.44 kWh, 12 batteries, HV

BOS-G60 Pro battery set with 12 high-voltage batteries with a total capacity of 61.44 kWh, smart BMS (HVB750V/100A-EU), and a distribution panel. This is a well-designed solution made of serially connected LiFePO4 batteries from the manufacturer DEYE, featuring easy rack installation, simple maintenance, and high reliability. The entire set offers a protection system including over-discharge, over-charge, over-current, and excessively high or low temperatures. The system can automatically manage charging and discharge status as well as balancing the current and voltage of each cell individually.

Key Features

• Quick rack installation with a height of 39 U
• Protection against over-current during charging/discharging and extreme temperatures
• Battery cluster with 12 batteries (5.12 kWh, total 61.44 kWh), possibility of up to 16 stacks in parallel
• Long lifespan of up to 6000 cycles, 10-year warranty
• Sufficiently high charging and discharging current - 100 A
• Communication interfaces: display, USB, BCOM (RS-485), 3x COM port, 2x battery, 2x input/output to the inverter, circuit breakers, 12 V DC power input
• Flexible configuration - multiple battery modules in parallel to expand capacity and performance. Supports USB upgrade, Wi-Fi upgrade (optional), remote upgrade (compatible with DEYE inverters).
• Wide temperature range - operating temperature range from -20 °C to 55 °C, with excellent discharge characteristics and lifespan

Package Contents

• (12) BOS-G-Pack5.1 Batteries (5.12 kWh)
• (1) BOS-G BMS (HVB750V/100A-EU)
• (1) BOS-G distribution panel - large
