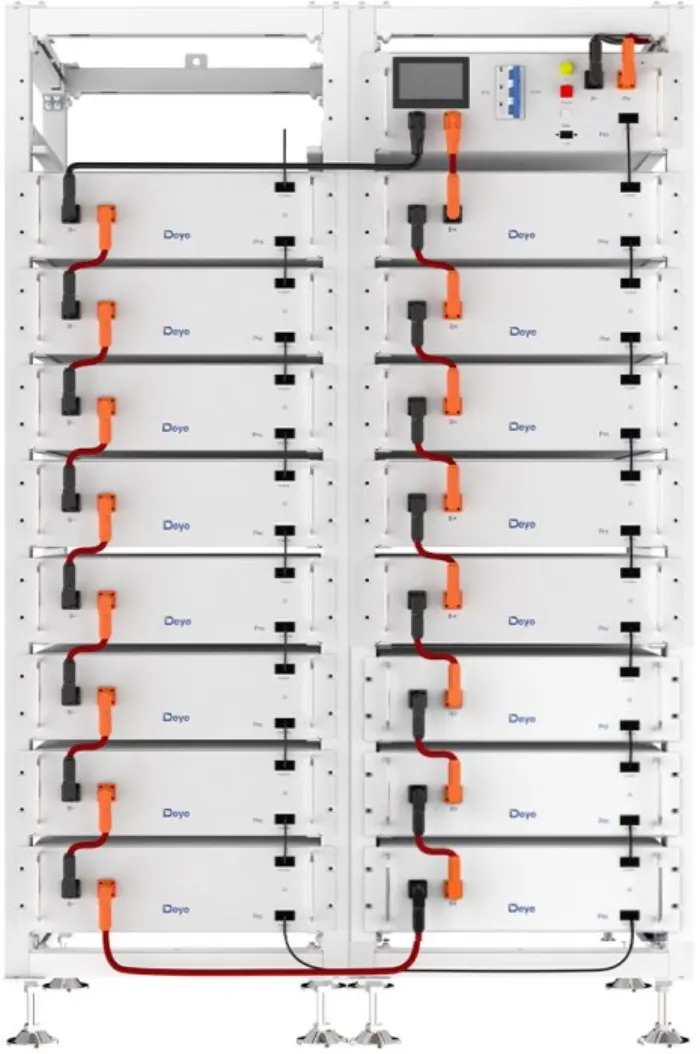

DEYE BOS-G80 Pro battery set, 81.92 kWh, 16 batteries, HV

BOS-G80 Pro battery set with 16 high-voltage batteries with a total capacity of 81.92 kWh, smart BMS Pro (BOS-G-PDU-2) and distribution box. This is a well-designed solution of series-connected LiFePO4 batteries from the manufacturer DEYE, with simple rack installation, easy maintenance, and high reliability. The entire set offers a system of protective functions including over-discharge, overcharge, overcurrent, and excessively high or low temperatures. The system can automatically manage charging and discharge status as well as the balancing of current and voltage of each cell individually.

Key Features

• Quick installation into two racks with a height of 27 U
• Protection against overcurrent during charging/discharging and extreme temperatures
• Battery cluster with 16 batteries (5.12 kWh, total 81.92 kWh), possibility of up to 16 stacks in parallel
• Long lifespan of up to 6000 cycles, 10-year warranty
• Sufficiently high charging and discharging current - 100 A
• Communication interface: display, USB, BCOM (RS-485), 3x COM port, 2x battery, 2x input/output to the inverter, circuit breakers, 12 V DC power input
• Flexible configuration - more battery modules in parallel to expand capacity and performance. Support for USB upgrade, Wi-Fi upgrade (optional), remote upgrade (compatible with DEYE inverters).
• Wide temperature range - operating temperature range from -20 °C to 55 °C, with excellent discharge properties and lifespan

Compatible inverter models

The battery set is exclusively designed for use with hybrid high-voltage inverters from DEYE with a power of 60–80 kW.

Package Contents

• (16) BOS-G-Pack5.1 Batteries (5.12 kWh)
• (1) BOS-G Pro BMS (BOS-G-PDU-2)
• (1) BOS-G distribution box - large
