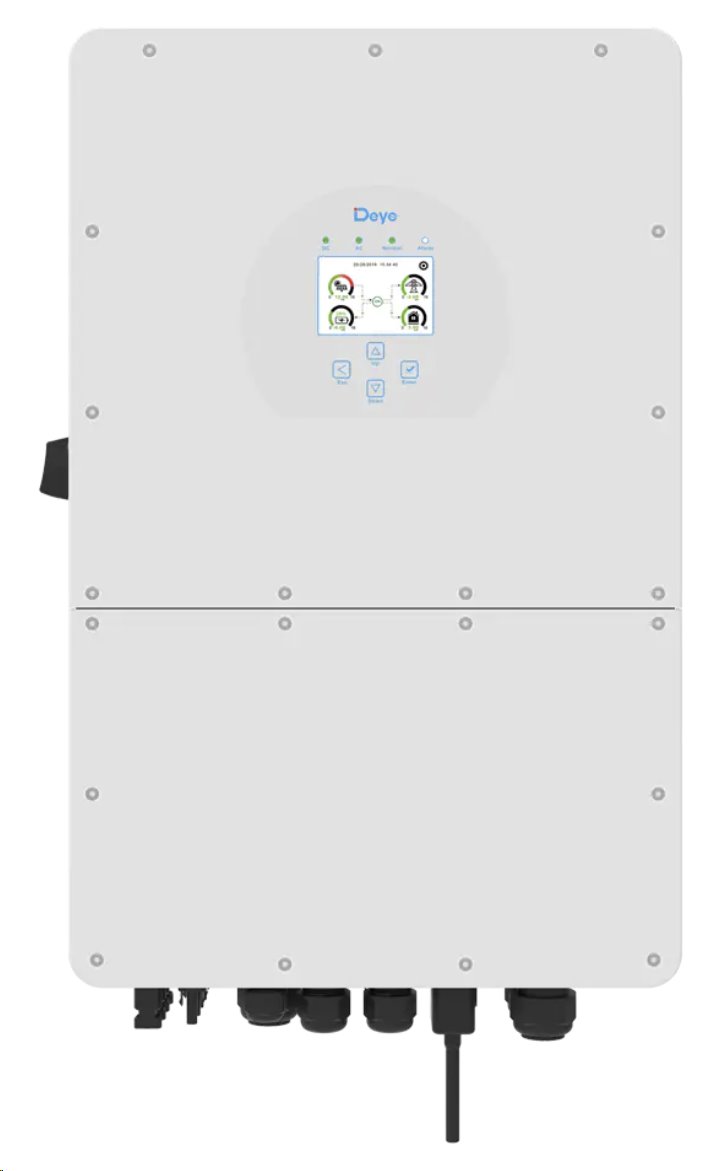

DEYE hybrid inverter 12 kW, 3 phase, HV

Hybrid 3-phase inverter for photovoltaic systems, adapted for high-voltage batteries with a voltage of 160 to 700 V, ensuring higher system efficiency due to less waste heat. This inverter can handle 2 trackers and a total of up to 3 strings in a 2+1 configuration with a maximum output of 12 kW and scalability of up to 10 parallel on-grid and off-grid systems.

Thanks to the smart monitoring platform, products from the full range of Deye inverters support remote shutdown instantly in case of an accident. Parameter settings and firmware updates remotely, making the operation of the photovoltaic system easier.

Key Features

• 2 MPP trackers, up to 3 strings in a 2+1 configuration
• Current limiting of trackers: 26 + 20 A
• MPPT voltage range: 150 to 850 V
• Support for multiple batteries in parallel
• Max. efficiency up to 97.6 %
• High-voltage batteries (160 to 700 V), higher efficiency
• Communication interface - RS-485, RS-232, DRM, CAN, and Wi-Fi
• Type II DC/AC SPD
• Max. charging/discharging current is 37 A
• 6 time periods for charging/discharging the battery
• Support for energy storage from a diesel generator

10-Year Warranty

During the first five years, the warranty covers all parts including labor costs. During the second five-year period, the warranty covers all parts excluding the LCD, fan, and labor costs. Detailed information about the 10-year warranty from DEYE can be found here.
