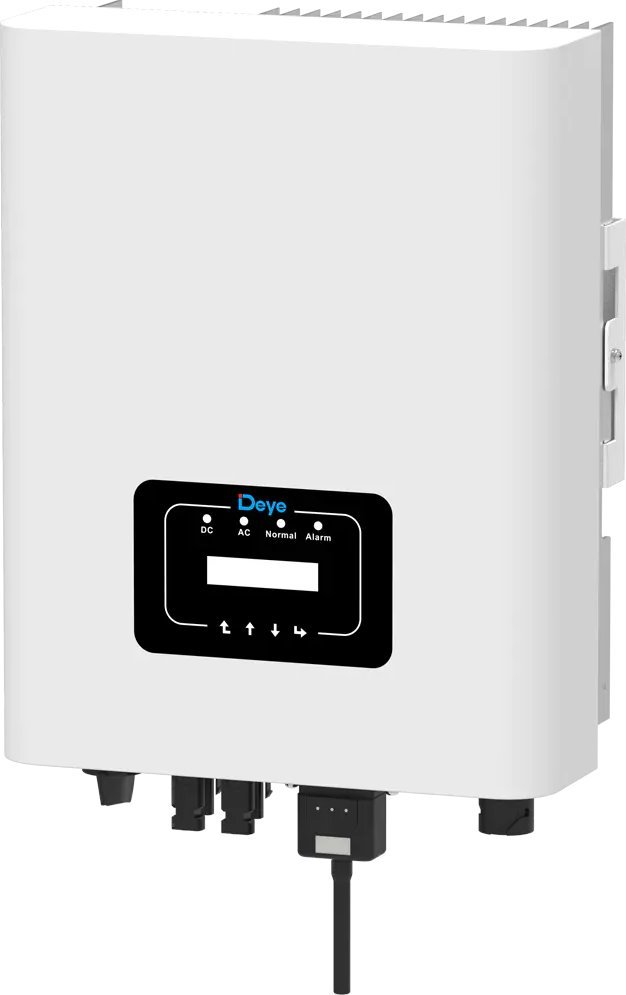

DEYE inverter 12 kW, 3 phase, G06

This series of inverters is specifically designed for three-phase PV systems, covering up to 12 kW. Thanks to its compact design, it is easy to install and operate. It supports a wide AC output voltage to ensure longer operating times.

Thanks to the smart monitoring platform, the full range of Deye inverters supports remote shutdown immediately in case of an incident. Parameter settings and FW updates can be performed remotely, facilitating the operation of PV systems.

This inverter successfully passed PPDS certification in categories A1 and A2 on June 18, 2026, at the Clean Energy Laboratory, EG.D in České Budějovice. Based on these certifications, it can be permanently connected to the distribution network in the Czech Republic under the rules effective from January 1, 2025.

Key Features

• 2 MPP trackers, a total max. of 2 strings in a 1+1 configuration
• Current limitation of trackers: 20+20 A (increased compared to the standard model with 13+13A)
• MPPT voltage range: 120 to 1000 V
• Max. efficiency up to 98.3%
• Zero export application, VSG application
• Intelligent string monitoring (optional)
• Wide output voltage range
• Communication interface - RS-485, RS-232, and Wi-Fi
• Type II DC/AC SPD
• Anti-PID function (optional)
