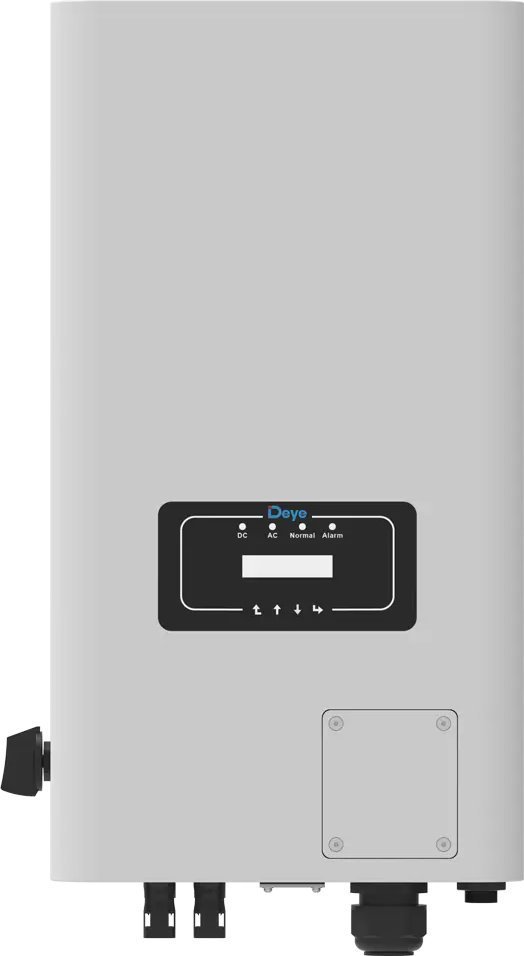

DEYE inverter 4 kW, 3 phase, G06

This series of inverters is specially designed for three-phase PV systems, covering up to 4 kW. With a compact design, it is easy to install and operate. It supports a wide AC output voltage to ensure longer operating time.

Thanks to the smart monitoring platform, the full range of Deye inverters supports remote shutdown immediately in case of an accident. Parameters can be set and firmware updated remotely, making the operation of the PV system easier.

This inverter has successfully passed the PPDS certification in categories A1 and A2 on 18. 06. 2026 at the clean energy laboratory, EG.D in České Budějovice. Based on these certifications, it can be permanently connected to the distribution network in the Czech Republic according to the rules effective from 1. 1. 2025.

Key Features

• 2 MPP trackers, total max. 2 strings in 1+1 configuration
• Current limiting of trackers: 20+20 A
• MPPT voltage range: 120 to 1000 V
• Max. efficiency up to 98.1 %
• Zero export application, VSG application
• Intelligent string monitoring (optional)
• Wide output voltage range
• Communication interface - RS-485, RS-232 and Wi-Fi
• Type II DC/AC SPD
• Anti-PID function (optional)
