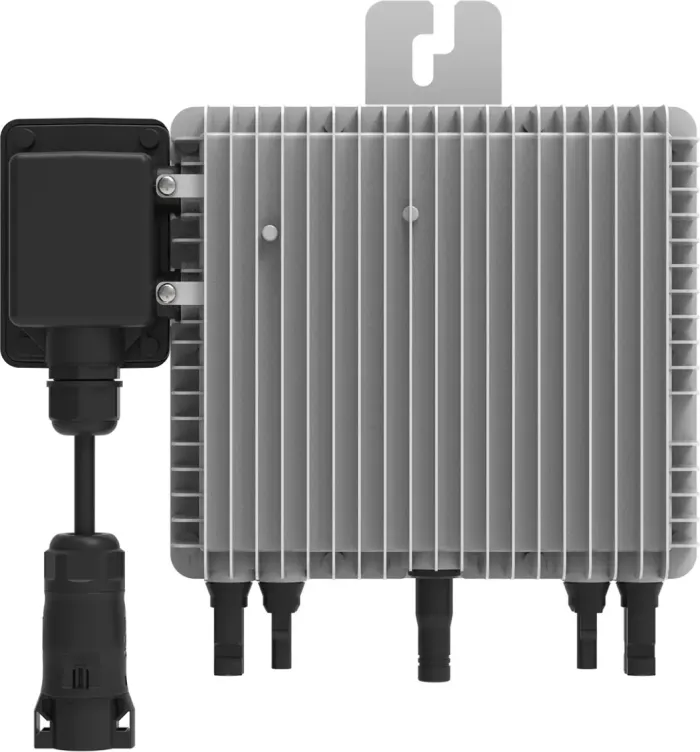

DEYE microinverter 1000W, 2 MPPT

The DEYE grid-connected microinverter with a advanced intelligent monitoring system has been designed with a focus on achieving maximum efficiency. The innovative microinverter is specifically optimized for 2 photovoltaic panels with a power of up to 700 W, making it an ideal partner for high-performance solar installations. With the rapid shutdown feature, you can be assured that your investment in solar energy is always safe.

Intelligent monitoring and remote control

One of the key features of Deye products is the smart monitoring platform, which allows users to instantly remote shutdown the inverter in the event of an unforeseen occurrence, ensuring safety. This platform also enables remote parameter adjustments and firmware updates, facilitating the operation and maintenance of photovoltaic power plants.

Specifications and features

The SUN M100G4 microinverter offers a range of technical specifications, positioning it among the top products on the market. With a maximum DC input current of 13 A + 13 A, it is optimally tailored for 2 photovoltaic panels with power from 210 to 700 W. Additionally, it is equipped with waterproof protection rated IP67 and allows communication via Wi-Fi. The microinverter features an MPP tracker and module-level monitoring, enhancing the safety and intelligence of the system. Users thus have better insight into the performance and status of their solar system.

Key features

• Module-level monitoring, safer and smarter
• Max. DC input current 2x 13 A, tailored for 210 to 700W PV panel
• Max. output power 1000 W (AC)
• Rapid shutdown feature
• IP67 protection rating
• Wi-Fi communication
• 2 MPP trackers/total of 2 strings, module-level monitoring

Warning

This microinverter is not intended for grid connection in the Czech Republic as it cannot set protections according to PPDS. Its intended use is mainly: for the construction of PV plants where it replaces the function of an optimizer or expands sets of hybrid inverters with fully loaded trackers by connecting to the inverter's gen port. Furthermore, it is primarily used where the number of panels in the string cannot start the tracker due to low voltage. But again, in conjunction with a hybrid inverter.

The microinverter is terminated with a special 3-pin 230 V AC female connector (not a standard EU plug), precisely so that it cannot be directly connected to the grid. These connectors are used to link microinverters in installations with each other and can be purchased separately, see related products.
