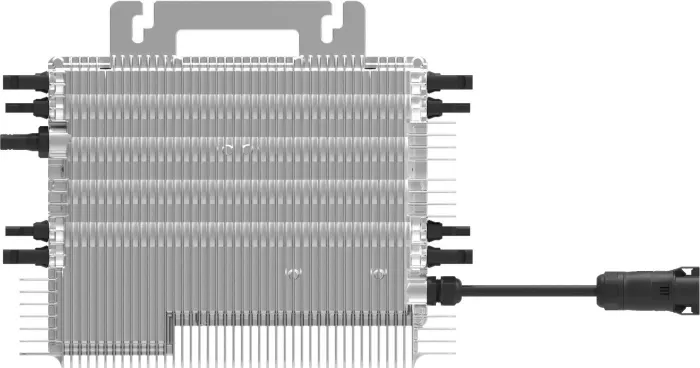

DEYE microinverter 2250W, 4 MPPT

The DEYE network microinverter with a advanced intelligent monitoring system has been designed with a focus on achieving maximum efficiency. The innovative microinverter is specifically optimized for 4 photovoltaic panels with a power output of up to 790 W, making it the ideal partner for high-performance solar installations. With the quick shutdown feature, you can be assured that your investment in solar energy is always safe.

Intelligent monitoring and remote control

One of the key features of DEYE products is the smart monitoring platform, which allows users to instantly remotely shut down the inverter in case of an unforeseen event, ensuring safety. This platform also enables remote adjustment of parameters and executing firmware updates, making the operation and maintenance of photovoltaic power plants easier.

Specifications and features

The SUN M225G4 microinverter offers a range of technical specifications, positioning it among the top products on the market. With a maximum DC input current of 18 A + 18 A + 18 A + 18 A, it is optimally suited for 4 photovoltaic panels with a power output of 210 to 790 W. It is also equipped with waterproof protection rated IP67 and allows communication via Wi-Fi. The microinverter features an MPP tracker and module-level monitoring, which enhances the safety and intelligence of the system. Users thus have better oversight of the performance and condition of their solar system.

Key features

• Module-level monitoring, safer and smarter
• Max. DC input current 4x 18 A, tailored for 210 to 790W PV panels
• Max. output power 2250 W (AC)
• Quick shutdown feature
• IP67 protection rating
• PLC, Zigbee, or Wi-Fi communication
• 4 MPP trackers, module-level monitoring

Warning

This microinverter is not intended for grid connection in the Czech Republic as protection settings according to PPDS cannot be configured. Its intended uses are primarily: for the construction of PV systems where it replaces the function of an optimizer or expands sets of hybrid inverters with fully loaded trackers by connecting to the generator port of the inverter. Additionally, and especially, it is used where the number of panels in the string cannot start the tracker due to low voltage. But again, in conjunction with a hybrid inverter.

The microinverter ends with a special 3-pin 230 V AC female connector (not a standard EU plug), specifically to prevent direct connection to the grid. These connectors are used to link microinverters in installation assemblies together and can be purchased separately, see related products.
