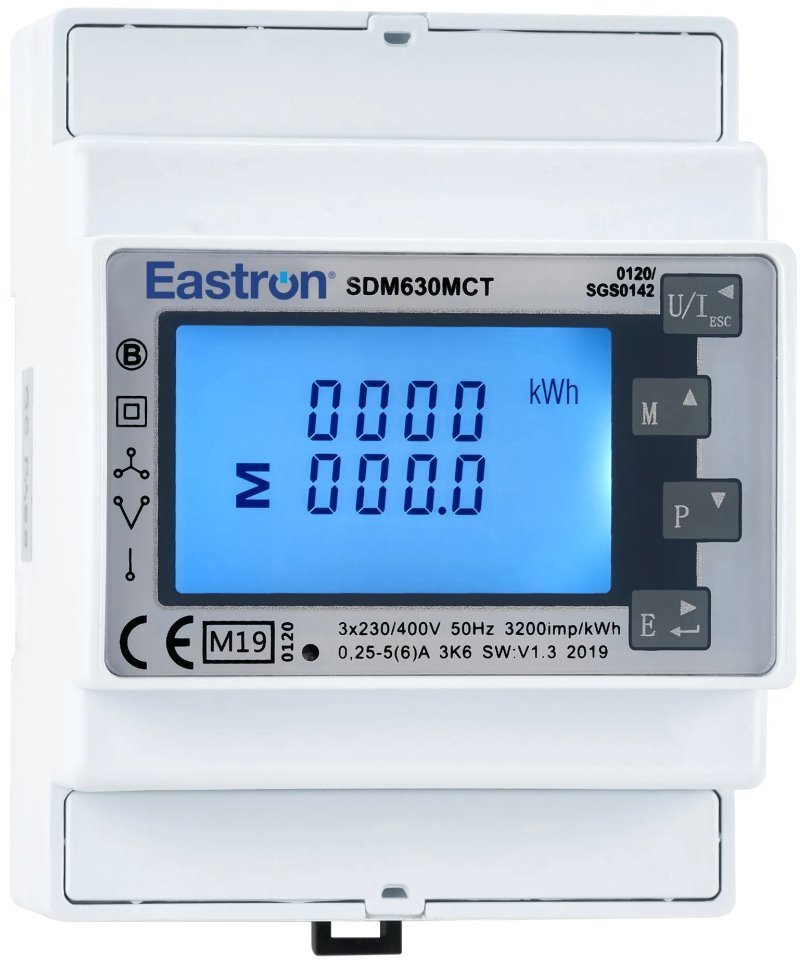

Eastron Electricity meter SDM630MCT, 1/3 phases, 300A coils

Intelligent electricity meter for single-phase and three-phase measurement. Measured parameters include voltage (V), frequency (Hz), current (A), power (kW/kVA/kVAr), import, export, and total energy (kWh/kVArh). The device can also measure maximum current and power consumption. This device measures and displays characteristics of single-phase two-wire (1p2w), three-phase three-wire (3p3w), and three-phase four-wire (3p4w) current in the network. There is a RS-485 communication port Modbus RTU available.

Displayed Parameters

• Voltage between phases and neutral (V)
• Phase current (A)
• Total harmonic distortion of voltage (U% THD)
• Total harmonic distortion of current (I% THD)
• Frequency (Hz)
• Power factor (PF)
• Maximum current consumption (MD A)
• Maximum power consumption (MD kW)
• Active power (kW)
• Reactive power (kVAr)
• Apparent power (kVA)
• Import of active energy (kWh)
• Export of active energy (kWh)
• Total active energy (kWh)
• Imported reactive consumption (kVArh)
• Exported reactive consumption (kVArh)
• Total reactive consumption (kVArh)

Important Features

• Voltage between phases and neutral conductor: 100 to 276 V (AC), not applicable for 3p3w
• Voltage between phases: 173 to 480 V (AC), only for 3p
• Dimensions: 94.5 x 72 x 65 mm
• Protection rating: IP51
• The package includes three coils with a cable opening of max. diameter 34 mm

Package Contents

• Electricity meter
• (3) measuring coil for 300 A
