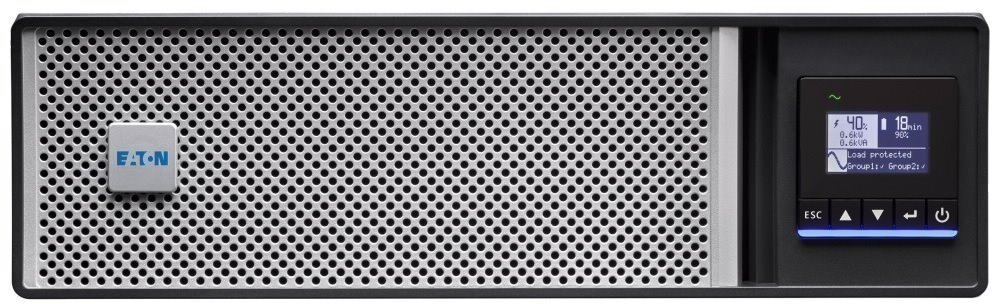

EATON UPS 5PX 2200i RT3U G2, 2200VA, Rackmount, 3U

Eaton's new UPS version, 5PX Gen2, delivers the best available line-interactive power protection for enterprise networks and Edge IT equipment, while maximizing IT space utilization and ensuring 24/7 business continuity. The Eaton 5PX Gen2 is equipped with advanced tools for remote monitoring, integration into the IT infrastructure and the possibility of remote deployment and maintenance for a large number of installed UPS.

The 5PX 2200i model, intended for desktop or rack mounting with a height of 3U, is equipped with an IEC C20 input connector, a connector for connecting an external battery and basically provides power of 2200 VA / 2200 W. The output has 8 IEC C13 type sockets and 2 IEC C19 type sockets.

USB and RS232 ports are available for communication. The source is equipped with a mini terminal block for remote on/off (ROO) and remote power-off (RPO), as well as potential-free contacts (2 outputs, optocoupler, RJ). It also contains a free slot for adding an optional communication card.
