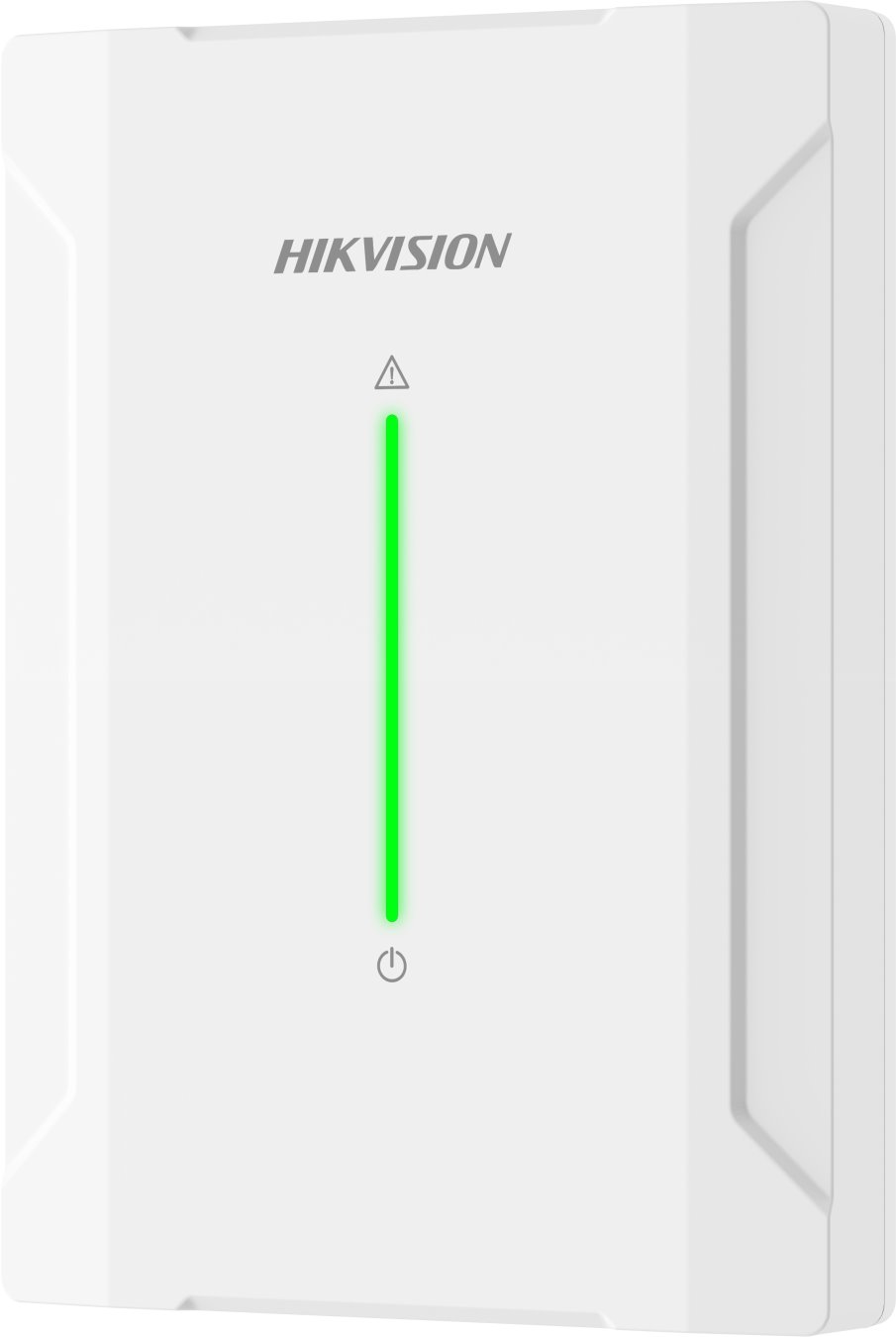

Hikvision AX PRO Bus input expander, 8 zone inputs, 4 PGM outputs

The expansion module offers 8 built-in wired zones, of which up to 4 can be set as PGM outputs. It supports NEOL, SEOL, DEOL, TEOL, Double Zone, and Inertia configurations, allowing for the detection of alarm, sabotage, masking, fault, or short circuit. Two Speed-X buses allow for range extension of up to 500 m and there is a power output for wired detectors. Protection against unauthorized manipulation from both the front and back increases the security of installations in villas, shops, offices, and hotels.

Key Features

• 8× built-in wired zone
• 4× zone configurable as PGM output
• Support for NEOL/SEOL/DEOL/TEOL/Double Zone/Inertia
• Detection of alarm, sabotage, masking, fault, and short circuit
• 1× power output for wired detectors
• 2× Speed-X buses
• Extension of bus distance by up to 500 m
• Protection against unauthorized manipulation from both the front and back
