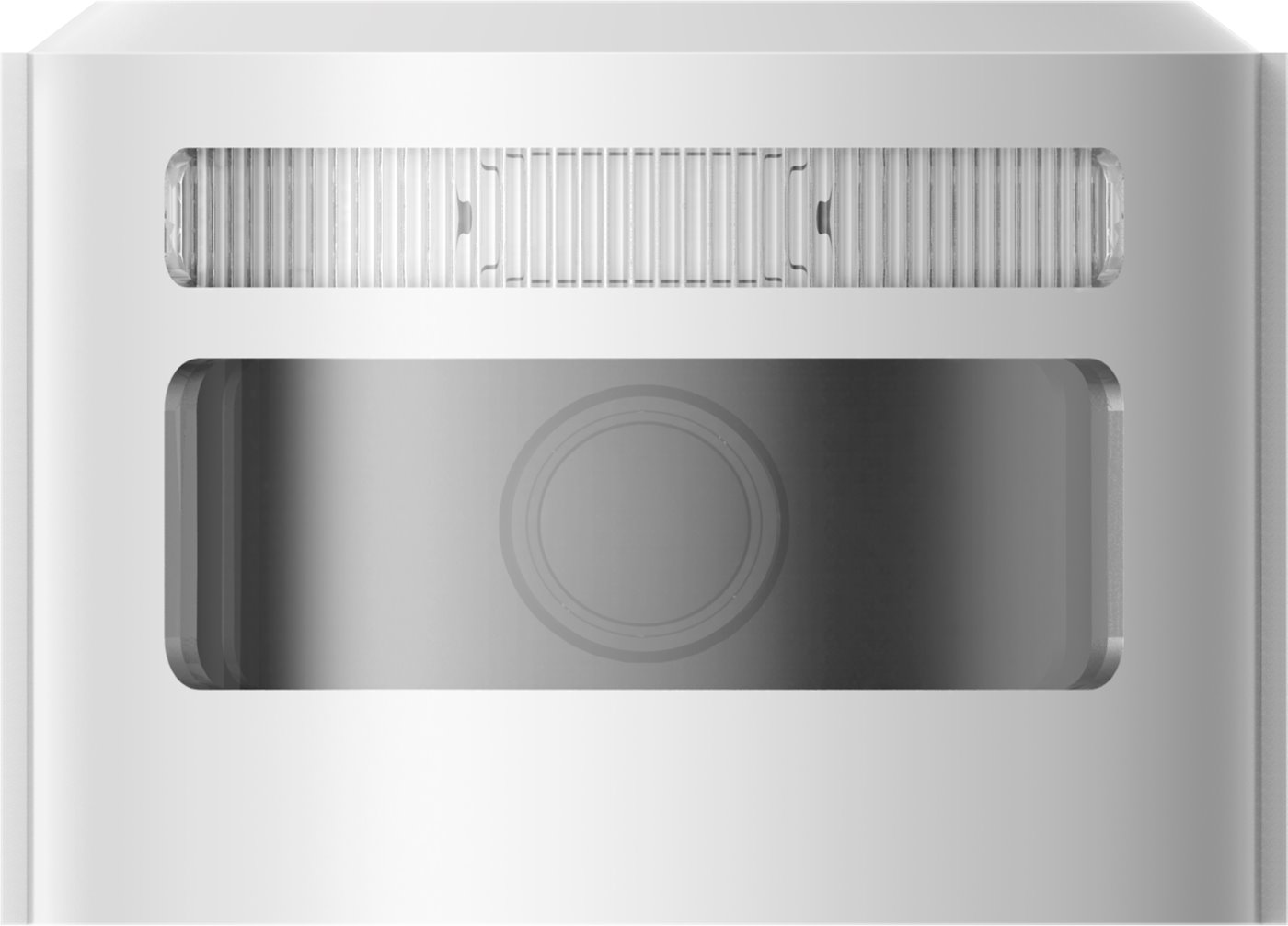

Hikvision AX PRO Camera module for motion sensor DS-PDTT15AM-LM-XX

The camera module expands the wireless outdoor motion detectors Hikvision AX PRO with the possibility of visual verification of alarms using captured images. It is designed for integration with models DS-PDTT15AM-LM-WE and DS-PDTT15AM-LM-WB and provides practical oversight of the protected area.

1/2.7" CMOS sensor and a 2.0 mm lens provide a high-quality color image with a wide horizontal angle of 137°. For capturing in low light conditions, IR illumination of up to 15 m and 3D digital noise reduction are available. Optional JPEG resolution of up to 640 × 480 px and IP66 rating ensure practical use outdoors.

Key features

• Camera module for Hikvision AX PRO
• 1/2.7" CMOS sensor
• 2.0 mm lens, F2.25
• Horizontal angle 137°
• Vertical angle 80.1°
• Resolution up to 640 × 480 px
• IR illumination up to 15 m
• 3D digital noise reduction
• IP66 rating
• Suitable for outdoor installation
