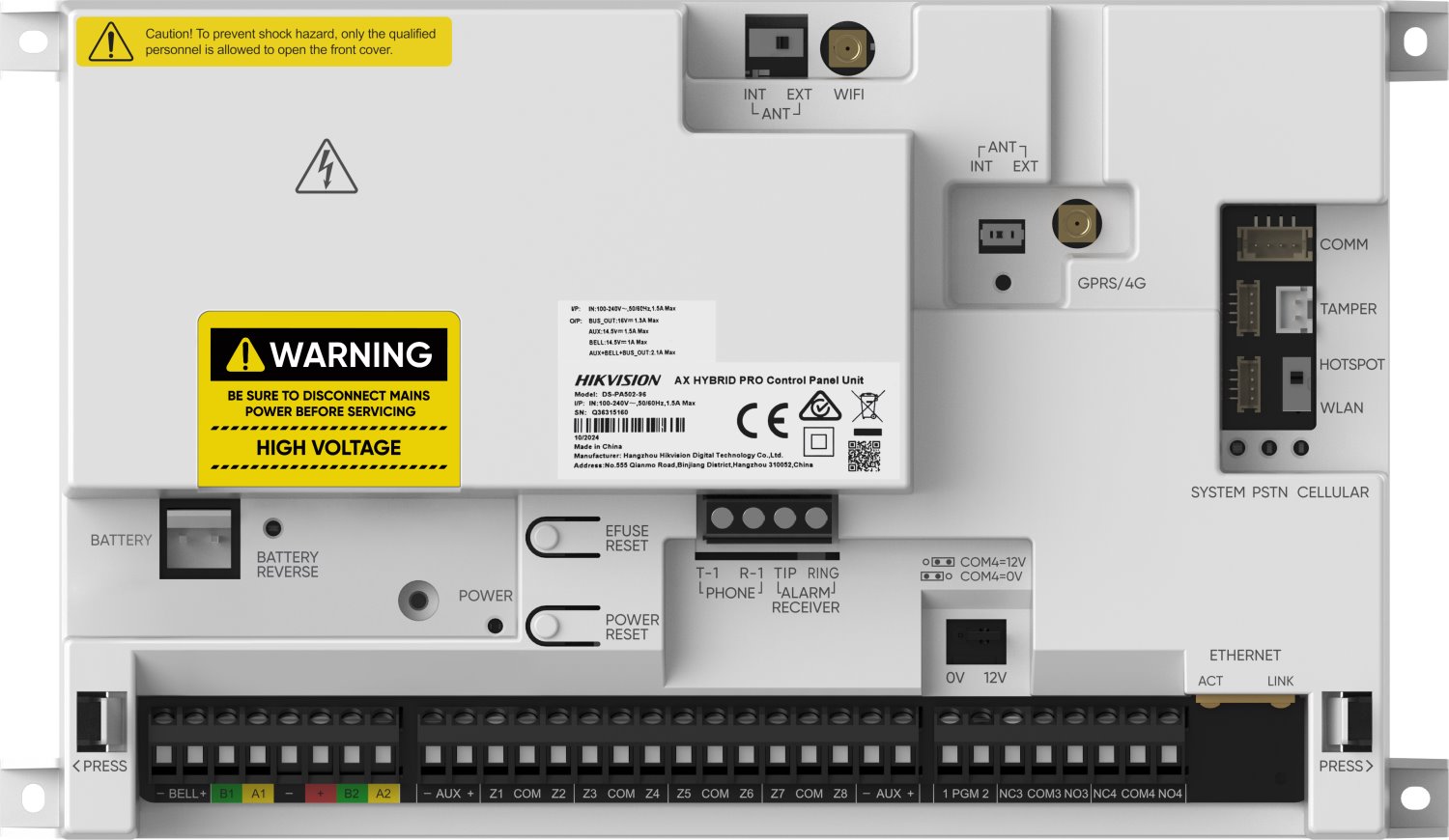

Hikvision AX PRO Control panel unit for 96 zones

The hybrid control panel offers a professional foundation for extensive security systems with a capacity of 96 zones, 96 outputs, and 48 areas. Managing up to 200 operators allows for precise access rights setting, while two bus ports with encrypted communication support up to 48 bus devices and 12 keyboards.

Communication via Ethernet and Wi-Fi can be extended with a PSTN/GPRS/4G communicator. Dual reporting to ARC with redundancy and video verification increases the reliability of alarm response. Support for ISAPI, OTAP, automation scenarios, and up to 48 PIR cameras is also available. The device meets EN50131 class 2 and is designed for indoor installations.

Key Features

• 96 zones and 96 outputs, 48 areas, up to 200 operators
• 2 encrypted bus ports, up to 48 bus devices, up to 12 keyboards
• Ethernet 10/100 Mbps
• Wi-Fi 802.11b/g/n, 2.4 GHz
• Dual reporting to ARC with redundancy
• Support for up to 48 PIR cameras
• 256 automation scenarios
• Up to 4950 logs, 16 outputs for sirens, 1 built-in
• Power interface: 1× AUX power output, 1× BELL power output
• Output voltage: 14.5 V nominal, 10.7–15 V with a ripple of 120 mV
• Output current: AUX up to 1.2 A, BELL up to 1 A (both protected by eFuse)
