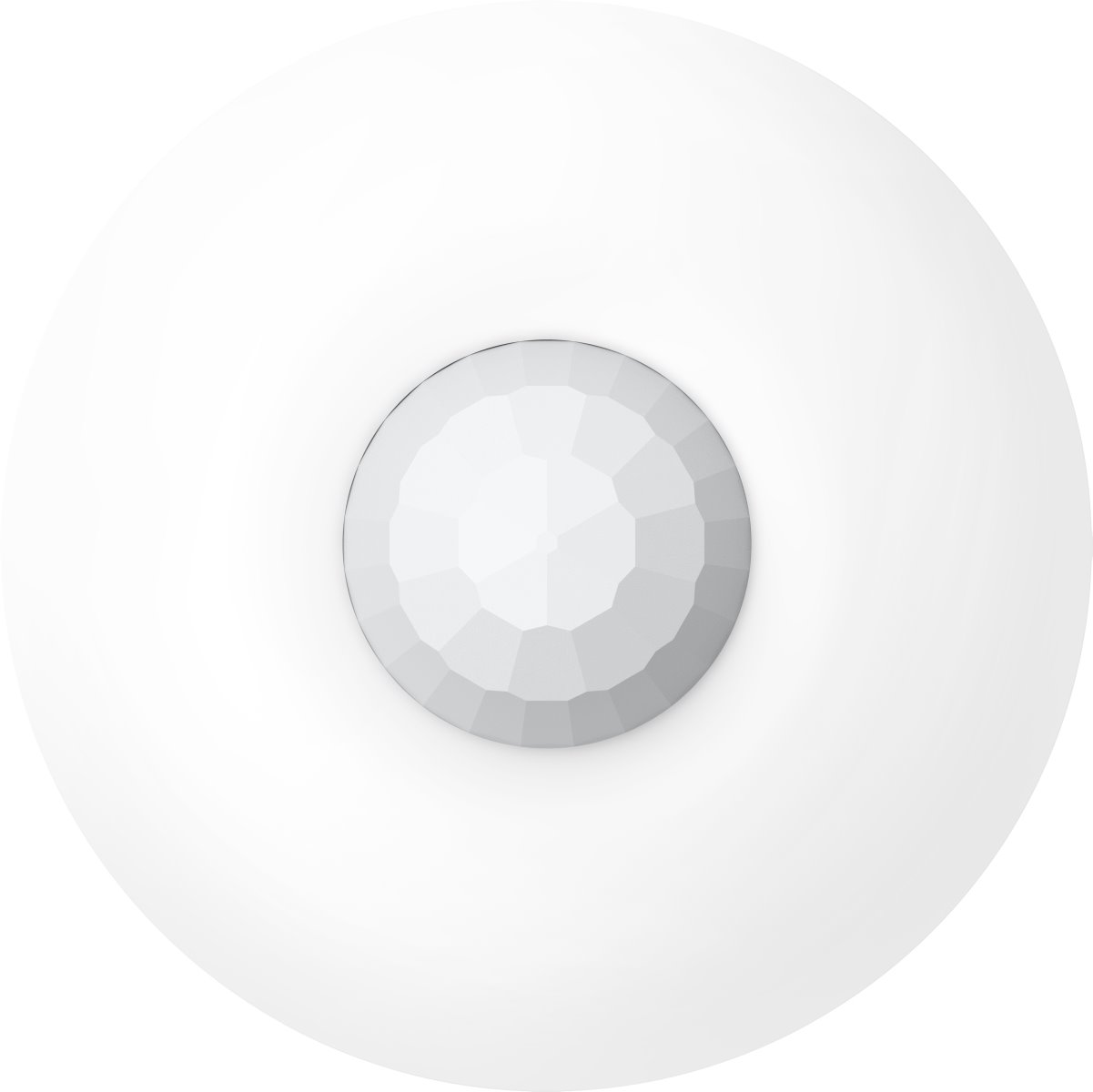

Hikvision AX PRO Wired PIR ceiling detector, 360°, 12m

The AX PRO series ceiling PIR detector offers 360° coverage with a range of up to 12 m and a total of 172 detection zones for accurate motion capture in large indoor areas. It detects movement at a speed of 0.3–2 m/s and utilizes automatic or low sensitivity. Wired communication with the control panel, digital temperature compensation, and a white light filter of 6500 lux ensure stable operation. Installation is suitable at a height of 2.4–4 m.

Key Features

• 360° PIR detection with a range of up to 12 m
• 172 detection zones
• Movement detection of 0.3–2 m/s
• Automatic / low sensitivity
• White light filter up to 6500 lux
• Digital temperature compensation
• Tamper protection
• Power supply 9–16 V DC, standard 12 V DC
• Installation height 2.4–4 m
• Ceiling mount
• Wired communication with the control panel
