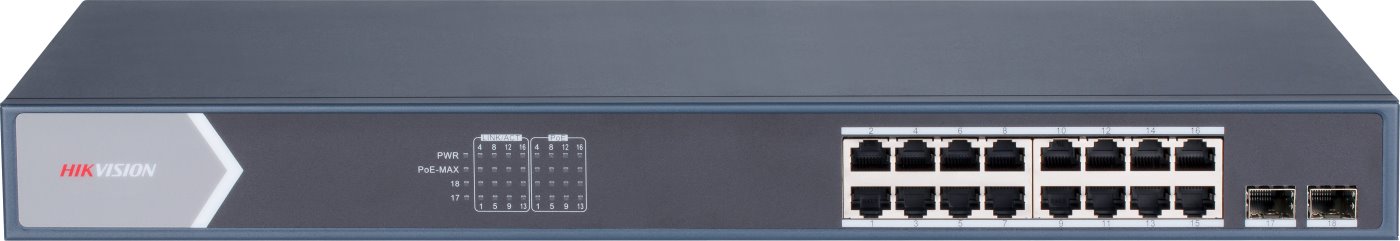

Hikvision DS-3E0518P-E/M PoE switch, 16x PoE, 125W

The ideal solution for powering IP cameras, access points, and other network devices offers 16 gigabit PoE ports with support for standards 802.3af/at. The total PoE power of up to 125 W allows efficient powering of multiple devices simultaneously, while intelligent PoE management optimizes the usage of available power.

High performance and durable construction

Thanks to gigabit ports, two optical uplinks, and wire-speed forwarding technology, smooth data transmission is ensured without unnecessary delays. A switching capacity of 36 Gbps and a processing speed of 26.78 Mpps support stable operation even under heavy loads. The sturdy metal chassis combined with two integrated fans contributes to long life and reliable operation in continuous use.

Key features

• (16) Gigabit Ethernet ports with PoE 802.3af/at (max. 30W/port)
• (2) Gigabit SFP uplink ports
• Total PoE budget 125 W
• Surge protection for PoE ports 6 kV
• Switching capacity 36 Gbps
• Power supply from 230 V AC
• Maximum self-consumption 25 W
• (2) fans 40 × 40 mm
• Durable metal chassis

Package contents

• Device
• Power cable
• Mounting accessories for rack installation
