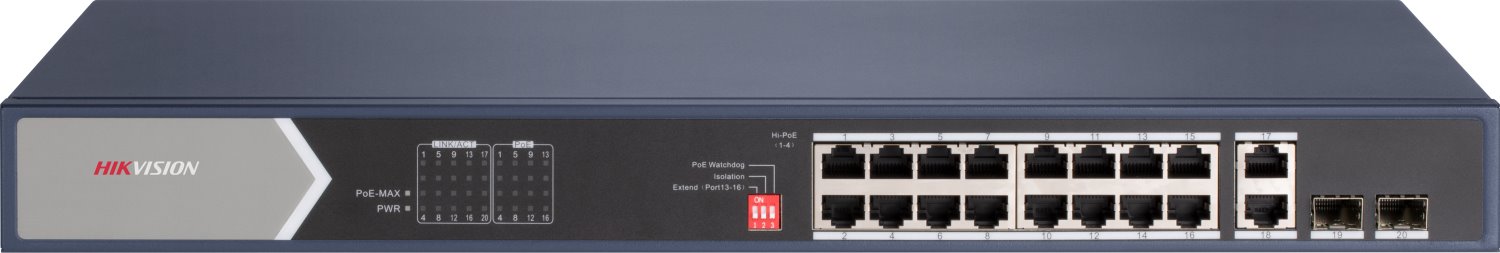

Hikvision DS-3E0520HP-E PoE switch, 16x PoE, 225W

The high-performance PoE switch is designed for professional deployment in camera systems, extensive corporate networks, or smart buildings. It offers 16 gigabit PoE ports, of which 4 support Hi-PoE up to 90 W for high-power devices such as PTZ cameras or outdoor intercoms. The remaining ports provide up to 30 W, with a total PoE budget of 225 W. Uplink connectivity is provided by 2 RJ-45 and 2 SFP gigabit ports, allowing flexible connections to the backbone network even over longer distances.

Features like PoE watchdog automatically restart unresponsive devices, minimizing the need for physical intervention. Ports 13–16 support "Extend" mode, which allows data and power transmission up to a distance of 300 m. 6kV surge protection ensures stability even in environments with a higher risk of voltage fluctuations. The entire device is housed in a robust metal chassis with rack-mounting options, ideal for server rooms or technical spaces.

Key Features

• 16 × gigabit PoE ports (4 × Hi-PoE up to 90 W, 12 × PoE up to 30 W)
• Total PoE budget of 225 W for powering multiple devices
• 2 × RJ-45 and 2 × SFP uplink ports for flexible connectivity
• Extend mode with a range of up to 300 m (ports 13–16)
• 6 kV surge protection on PoE ports
• Metal chassis with rack-mounting options
• Switching capacity of 40 Gbps and throughput of 29.8 Mpps
